LANTEST-PRO Network Cable Tester |
 |

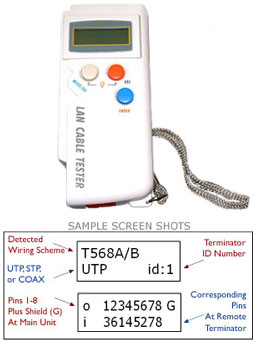

Easy to read LCD display shows continuity, opens, shorts, and pin
mismatches. Shows exact pinout. (see sample screenshots - left). Saves time by allowing you to test up to 8 cables by making only one trip
from the patch panel to the locations. Automatically identifies (8) different wiring schemes plus (1) temporary
user-defined scheme. Backlit display allows test readings to be visible in dark areas. Low
battery indicator. Menu driven user interface makes the tester easy to use and fast for anyone
to learn.
Anyone who installs or maintains UTP (category 5, 5E, 6, etc.) cabling from
novice to professional will love the CABLETEST-PRO tester. If you ever had to
test several cables, and make a trip from the patch panel to the jack for each
location, this tester will save you time and labor. By using the included
remotes, you will be able to test up to 8 cables in one trip. The new graphical
interface will simplify troubleshooting, and take away the guesswork.
 User Manual
 Included
|
| Terminators (Remotes) & Patch Cables |
 |
The remote terminators work in conjunction with the
LANTEST-PRO Network cable tester. Use the provided patch cables to connect up to
eight terminators to the patch panel. Then you can go to the eight locations to
test each one without having to make a trip back to the patch panel. Each remote
will show up on the master unit with a unique ID (#1 thru #8). This feature is
extremely useful and a great time saver to professional installers who typically
have to test several cables.
User Manual
|
Included in: |
| LAN-PRO
4 |
LAN-PRO
8 |
| 4 Remotes & 5
Cables |
8 Remotes & 9
Cables |
|
|
Professional Impact “110” Termination Tool with Blade |
 |
Professional punch tool with adjustable impact. Comes with '110' blade. Storage compartment in handle for blade storage. Each blade has a cutting and non-cutting side.
Included
|
| EZ UTP Cable Stripper |
 |
The EZ UTP Cable stripper is the best tool that you'll ever use for
stripping all UTP (cat 5E, cat6, etc) and STP (Cat5 Shielded) cables. The
stripper is fast and precise, and never nicks the wire. This tool is a great
time saver for both novices and professionals.
View Demonstration movie
(Microsoft Streaming video may not be supported by some browsers).
Included
|
|
Crimper for RJ-45 and RJ-11/12 Ratchet Type |
 |
- Has dies for RJ-45 and RJ-11/12. Crimps 8P8C, 6P6C, 6P4C , 4P4C ,
etc.
- Heavy duty metal construction with Ratcheting action. The ratchet
mechanism allows for more precise crimps with less effort.
- The dies move up in a straight motion (as opposed to an angled
motion) allowing for more precision and uniformity in the crimping of
all of the conductors.
Included |
|
Parts Box |
 |
The parts box is extremely useful for storing small parts such as connectors,
boots, screws, etc. Comes with 6 adjustable dividers that will allow you to
separate the box into three to nine separate compartments sized to your
choosing.
The interior of the box measures 6.5"(L) x 3.5" (W) x 1.25"
(H). The parts box stores sideways, and is removable from the toolkit. Has lock
snaps to prevent unwanted opening.
Included |
| 140 Tone Generator / Continuity Checker |
If you are looking for a quality professional tone generator that will last, then look
no further. AINES tone generators are the top choice of RBOC's (telephone
companies) around the nation. These units were engineered for rugged field use
in all types of weather and conditions. This is one of the strongest tone
generators that you'll find on the market. It is strong enough to trace and
identify wires that are buried inside walls and underground (NOTE: 1. When used in conjunction with AINES Inductive Probes. 2. Depth
of bury may impact performance). |
- Heavy Duty weatherproof / water resistant case
- Professional Alligator clips with "bed of nails" and single
spike wire piercing, U-shape terminal grippers, and superior spring tension and
superior insulation.
- Superior quality braided cords meet BELLCORE fire retardant
requirements.
- Twisted tinsel conductors offer high flexibility even at low temperatures
plus greater wear.
- Patented long lasting modular "K-Plug" (RJ-11/12). The locking clip design
is virtually indestructible.
- 1000 hertz or 500/1000 hertz strong alternating tone for tracing pairs...
- 3 Color LED indicator (indicates continuity, shorts, presence of line
voltage, good polarity, reverse polarity, a/c voltage, ringing line, etc.)
- Convenient carrying lanyard
- Locates broken pairs/cables in walls (inductive probe required).... Provides
talk power on a dead pair.... Continuity test.... Long battery life...
- 1 year manufacturers' warranty
Optional
|
| 240 Tone Generator / Continuity Checker |
If you are looking for a quality professional tone generator that will last, then look
no further. AINES tone generators are the top choice of RBOC's (telephone
companies) around the nation. These units were engineered for rugged field use
in all types of weather and conditions. This is one of the strongest tone
generators that you'll find on the market. It is strong enough to trace and
identify wires that are buried inside walls and underground (NOTE: 1. When used in conjunction with AINES Inductive Probes. 2. Depth
of bury may impact performance). |
- RJ-11 6 pin Female socket in the body to facilitate easy connection to plug
ended cables. The socket doubles as a holder for the RJ-11/12 plug when not in
use.
- Heavy Duty weatherproof / water resistant case
- Professional Alligator clips with "bed of nails" and single
spike wire piercing, U-shape terminal grippers, and superior spring tension and
superior insulation.
- Superior quality braided cords meet BELLCORE fire retardant
requirements.
- Twisted tinsel conductors offer high flexibility even at low temperatures
plus greater wear.
- Patented long lasting modular "K-Plug" (RJ-11/12). The locking clip design
is virtually indestructible.
- 1000 hertz or 500/1000 hertz strong alternating tone for tracing pairs...
- 3 Color LED indicator (indicates continuity, shorts, presence of line
voltage, good polarity, reverse polarity, a/c voltage, ringing line, etc.)
- Convenient carrying lanyard is reversible to hang the unit right side up, or
upside down according to your preferences.
- Locates broken pairs/cables in walls (inductive probe required).... Provides
talk power on a dead pair.... Continuity test.... Long battery life...
- 1 year manufacturers' warranty
Optional
|
| 250 Speaker Probe |
If you are looking for a quality professional inductive speaker probe that will last
then look no further. AINES speaker probes are the top choice of RBOC's
(telephone companies) around the nation. These units were engineered for rugged
field use in all types of weather and conditions. When used in conjunction with
AINES tone generators it will be possible to trace and identify wires that are
buried inside walls and underground (depth of bury may impact
performance). |
- Heavy Duty streamline design
- High Quality audio. Speaker volume and circuitry are optimized for greatest
tracing volume verses noise interference.
- The model 250SSP gives you the option to trace signals with the use of a
butt-set (in lieu of the built in audible speaker) by clipping onto the end
terminals. The unit is automatically powered on when the butt-set is attached.
This feature may prove useful in when working in environments where noise may be
objectionable.
- Uses standard 9V DC battery. Separate easy open battery compartment.
- Supplied with both a cone-shaped tip and a duckbill tip that is
longer and flatter, permitting insertion into larger cables, or cables under
tension where slack cannot be obtained.
- Convenient carrying lanyard.
Optional
|
| 400 Speaker Probe with Volume Control |
If you are looking for a quality professional inductive speaker probe that will last
then look no further. AINES speaker probes are the top choice of RBOC's
(telephone companies) around the nation. These units were engineered for rugged
field use in all types of weather and conditions. When used in conjunction with
AINES tone generators it will be possible to trace and identify wires that are
buried inside walls and underground (depth of bury may impact
performance). |
- Heavy Duty streamline design
- Adjustable volume control speaker which enables you to turn up the volume to
trace very faint signals. Note: For most situations the unit will be
optimized at about half-volume.
- No need to hold the on button. Just press the button once and the unit will
stay on while you trace the signals. The unit will automatically shutoff after
180 seconds, or simply depress the button for 5 seconds to power off.
- Uses standard 9V DC battery. Separate easy open battery compartment.
- Supplied with both a cone-shaped tip and a duckbill tip that is
longer and flatter, permitting insertion into larger cables, or cables under
tension where slack cannot be obtained.
- Convenient carrying lanyard.
Optional
|
| RJ-45 Modular Adapter |
 |
Modular adapters have been a necessary component of a technician's toolkit since modular jacks were first invented.
Known to professionals as "banjos" these devises are indispensable in
troubleshooting and accessing modular terminals with tone generators/continuity
checkers and butt-sets which utilize alligator clips. By breaking out all eight
terminals, the modular adapter allows you to have unlimited flexibility in
choosing which connections you want to connect to.
- Terminals numbered 1-8 to correspond to pins 1-8 on the modular jack.
- Comes with RJ-45 cable with patented long lasting modular "K-Plugs". The
locking clip design is virtually indestructible.
- Has two RJ-45 jacks for feed-thru applications.
- High Impact plastic shell with belt clip.
Optional
|
