18 Adapter (1-36) Fiber Outdoor IP68 Rated Aerial Horizontal / Wall Mountable Fiber Optic Splitter / Splice / Distribution Enclosure with Splice Sleeves, 12/24 Fiber Splice Tray, and Mounting Hardware by QuickTreX®

SKU:QT-OAWM-SSE-24F-IP68 5.0/5 (110 Reviews)

• Outdoor
• 18 x Flanged Adapters
• Wall/Aerial Mount

$89.95

Choose Adapter 1

Choose Adapter 2

Choose Adapter 3

Choose Adapter 4

Choose Adapter 5

Choose Adapter 6

Choose Adapter 7

Choose Adapter 8

Choose Adapter 9

Choose Adapter 10

Choose Adapter 11

Choose Adapter 12

Choose Adapter 13

Choose Adapter 14

Choose Adapter 15

Choose Adapter 16

Choose Adapter 17

Choose Adapter 18

Choose Splitter Cassette Option

15 units available

At a Glance

Wall / Aerial Mountable
Fits 18 x Flanged Adapters
Up to 36 Fibers w/ Standard Adapters

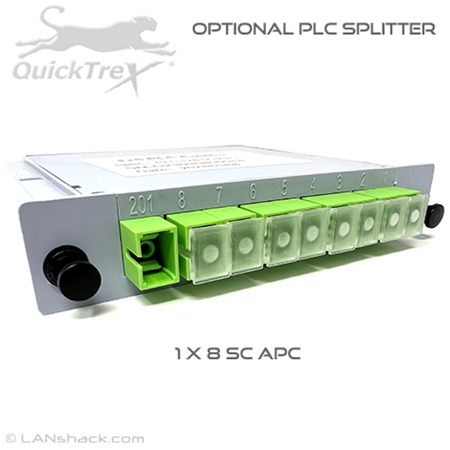

Fits Optional 1 x 8 PLC Splitter Cassette
Includes 12/24 Fiber Splice Tray
Made of High Strenght PP Plastic
IP68 Rated and UV Protected
Includes Sealed Clip-Closing Door
Variety of Cable Entry/Exit Grommets
Includes 16 Splice Sleeves
Includes Cable Clamps & Ties
Includes Aerial Mounting Brackets

Add Related Products

Pre-Term Fiber Assemblies

MTP Trunk Assemblies

MTP Fanout Cables

MTP Cassettes

Fiber Optic Enclosures

Fiber Optic Patch Cables

Ethernet Patch Cables

Ethernet Cable Bundles

Unterminated Fiber By The Foot

Our QuickTreX^® 18 Adapter (1-36) Fiber Outdoor IP68 Rated Aerial Horizontal / Wall Mountable Fiber Optic Splitter / Splice / Distribution Enclosure with Splice Sleeves, Splice Tray, and Mounting Hardware is IP68 rated and perfect for interconnectivity and termination of optical fibers in outdoor overhead distribution locations and for wall mount locations. It's made of high strength PP plastics to provide heavy duty UV and waterproof protection of your fiber optic connectors. It's also corrosion and aging resistant. Our 1-36 fiber optic aerial/wall mount PLC splitter / splice enclosure includes one 12/24 fiber hinged splice tray and is designed to house an optional PLC splitter cassette. It also includes an 18 adapter capacity panel for installations that require feedthrough couplings of fiber optic connectors. This fiber enclosure also offers a high quality sealing gasket to help seal out moisture and dust. This enclosure has a clamp stile door and is designed to be aerially on a guy wire and can also be wall mounted. It includes aerial mounting brackets,16 splice sleeves, electrical tape, hose/cable clamps, and zip ties.

Includes:

Aerial Hanging Brackets
(1) 12/24 Fiber Splice Tray
(1) 16 Adapter Capacity Panel
16 Splice Sleeves
6 Hose/Cable Clamps
Zip Ties
PVC Electrical Tape

Specifications

Mounting Type

Aerial Horizontal / Wall Mount

Adapter Options

See Dropdown Menu

Panel

(1) 16 Adapter Capacity

Dimensions

7.08"H x 11.42"W x 4.33"D

Fiber Capacity

36 Fibers

Splice Tray

(1) 12/24 Fiber

Material

High Strength PP Plastic

IP Rating

IP68

Color

Black

Cable Entry / Exit

(2) 8-20mm and (8) 5-14mm

Operating Temps

40°C to +75°C

Relative Humidity

≤ 85%

Atmospheric Pressure

70Kpa to 106Kpa

Standard

YC/T814.1-2004

Impact

1m/1kg Steel Ball / Three Times

Bending

150N / ±45° / 10 cycles

Torsion

50N.m / +90° / 10 cycles

Insulation Resistance

2x10^4MΩ/500V

Compression Strength

15kv/1min/10mA

Manufacturing

ISO9001

Hardware

Included
