Custom Armored Indoor Plenum Rated Singlemode 9/125 Premium Simplex Fiber Optic Patch Cable with Corning® Glass - Made in the USA by QuickTreX®

Our QuickTreX® Custom Armored Indoor Plenum Rated Singlemode 9/125 Premium Simplex Fiber Optic Patch Cables are custom made to order in the USA by highly trained technicians and are constructed with premium components.   Because these patch cables are made to order, you can choose any length from 6 inches up to 30 meters and any connector type to fit your custom installation needs. Our connector options include LC, SC, ST, and FC.  All of our cables come with a standard UPC (Ultra Physical Contact) polish or optional APC (Angle Physical Contact) polish on LC, SC, and FC connectors.  We will keep you informed of your order status from start to finish so you can plan your installation accordingly.  You will receive an order confirmation immediately, a ship date within 24 hours, and tracking information once your custom cables ship out.

Our armored indoor custom fiber optic patch cables are perfect for patching fiber to equipment in industrial environments where crush resistance and rodent protection is needed where your patch cables are exposed.  Using an armored patch prevents damage to the fiber strands.  This is especially important for critical networks where zero down time is an absolute must.  We make our custom fiber patch cables along side our custom fiber optic distribution assemblies so you can be assured that the same premium components and quality control are in place. Fiber optic patch cables are the last critical link in connecting your network.

Our QuickTreX® armored singlemode OS2 9/125 patch cables always include Genuine Corning SMF-28e+  Glass and premium connectors with ceramic ferrules for increased durability and accuracy.   These fiber optic patch cables offer premium precision, making them a popular choice for critical installations.  They also feature a 3mm indoor plenum (OFNP) rated jacket which make them more versatile and usable in all indoor environments versus regular riser rated (ONFR) or standard PVC cables which are commonly seen in most imported stock patch cables.  A cable rated for plenum installation will have low-smoke characteristics as defined by the NFPA (National Fire Protection Agency).  These patch cables include a stainless steel coil technology.  This allows for the cable to remain extremely flexible while also being crush and rodent resistant.

QuickTreX® fiber optic jumpers are fully tested and come with a test report to guarantee top performance. Our strict testing standards mandate a maximum allowable insertion loss if 0.02 dB (or less). Each connector is visually inspected with a 400x microscope for any surface or interior cracks, scratches, contaminants, or other imperfections which can pick up defects that insertion loss testing alone may miss. Each cable includes a label around the jacket which has an individual serial number and part number for easy identification and traceability.  The cables are sealed in individual bags and the test results are included with each individual cable.  Our manufacturing process includes strict quality control and is ISO9000 certified.

ESTIMATED LEAD TIMES: 1-3 business days (or possibly more for higher quantities).

FEATURES

• Each Cable is custom made in the USA by Skilled Technicians (no assembly lines)
• The cable is made with Genuine Singlemode 9/125 Corning SMF-28e+  glass for superior performance
• Fiber Wavelength - 1310/1550nm
• Link Length: 10,000 m (1Gb/s@1550nm), 5,000 m (10Gb/s@1550nm)
• Yellow Stainless-Steel Armored 3.0mm Indoor Plenum Rated Jacket
• Jacket print ensures product identification and fiber type
• Premium grade connectors with ceramic ferrules for increased durability and precision
• Insertion loss testing performed on every cable with strict maximum allowable loss if 0.02 dB (or less)
• Each connector is visually inspected with a 400x microscope for any surface or interior cracks, scratches, contaminants, or other imperfections

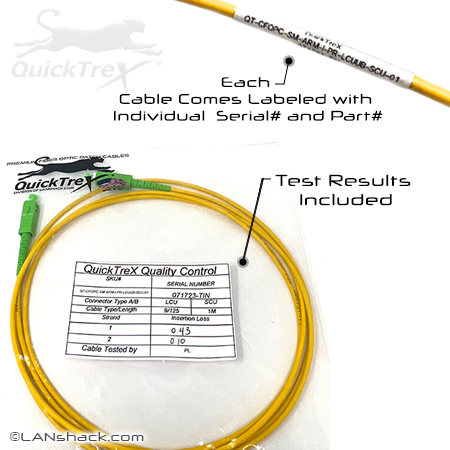

• All cables are individually labelled with an individual serial number and the QuickTreX part number for easy identification and traceability
• Each cable comes with the test results
• All component and materials meet the EU RoHS and REACH Directive standards
• Guaranteed top performance

Note 1: Connector styles may vary slightly in appearance according to availability.

Note 2: For lengths longer than 30 meters or for pulling we recommend our Fiber Whips.

IMPORTANT: Due to the fact that these are custom made to order cables, they are non-cancelable and non-returnable. Please choose your product description and specifications carefully.

Suggested Reading: Fiber Type vs Speed and Distance

Urgent Orders: Read Information
