Weatherproof IP68 Connectorized HMFOC OptiTip® Singlemode APC 12 Fiber Corning SST-Drop™ MTP Cable Assembly - Outdoor (OSP) Gel-Filled - custom made in USA by QuickTreX®

click on thumbnail to zoom

Item #: QT-OTI-CD-12SM
Base Price: $436.60
NOTE: Choose options below to calculate price
Please make your selections above.



Be the first to submit a review on this product!
Review and Rate this Item

Our QuickTreX® Weatherproof IP68 Connectorized HMFOC OptiTip® Cable Assemblies are made with the highest quality cable and components.  They are designed to fit flawlessly with FlexNAP and OptiSheath® MDU and Fiber Distribution terminals often seen in fiber to the antenna or other waterproof connection installations.  We start with genuine HMFOC OptiTip® connectors and precision terminate them to genuine Corning® SST-Drop™ Cable.  Our termination process delivers maximum physical contact for consistently low insertion loss and excellent return loss characteristics across the entire 12 fiber interface.  Our assemblies are always Proudly made in the USA and include a full test report.

About OptiTip Connectors:

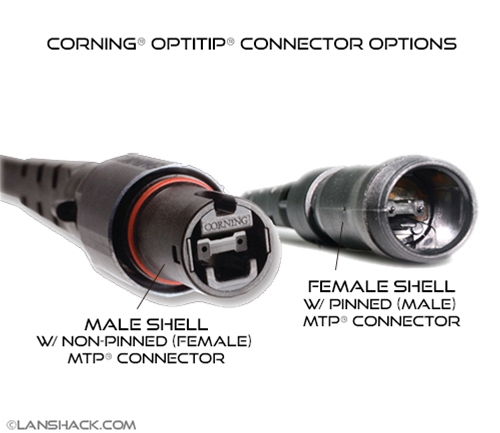

The OptiTip® assembly is designed for use in outside plant fiber access networks with FlexNAP and OptiSheath® MDU and Fiber Distribution terminals. This innovative cable assembly solution provides enhanced design flexibility, increased deployment speed and reduced installation cost. The OptiTip® connector is the key enabler for quick connect of up to 12 fibers at a time. The connector is based on the field proven MTP® connector technology encapsulated in a hardened package suitable for use in any environment. A male (pinned) version and a female (non-pinned) version are easily joined to make a watertight terminal or in-line connection. Factory installation and testing ensures reliable, low optical loss on all fibers.

These assemblies are rated for almost all outdoor applications. The Corning SST-Drop™ dielectric cable used for these assemblies offer the ease of installation of standard ALTOS cables in an easyaccess, single-tube design. The dielectric version eliminates any bonding and grounding requirements. The cables are RDUP (RUS) listed and offer exceptional crush resistance.  The Loose tube construction and all-dielectric jacket are water proofed, rodent resistant and fungus resistant.

This cable is suitable for underground installation, overhead lashed to a guide wire, or secured to a building or other permanent outdoor structure.  The heavy duty polyethylene jacket is also UV rated so it can be exposed outdoors where there is no threat of rodent damage or blunt force damage.

Features / Benefits:

  • Aerial self-supporting, direct buried or duct installation
  • All-dielectric design eliminates bonding/grounding
  • Works with industry-standard wedge clamps
  • Pre-connectorized for a plug and play solution
  • Standard ALTOS Cable buffer tube in an easy-access single-tube design, compatible with standard hardware and standard craft practices
  • Exceptional crush resistance
  • RDUP listed (formerly RUS)

 OpitTip Polarity & Pinnout
