LC (equip.) to SC Mode Conditioning Cable

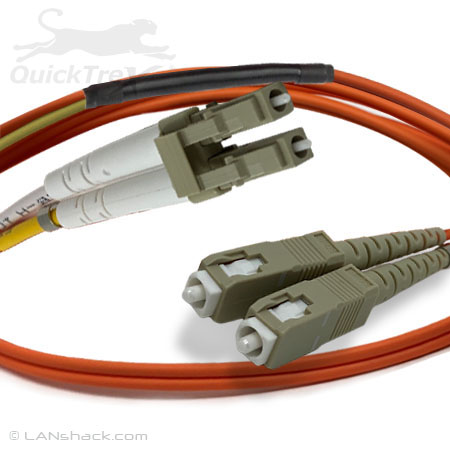

LC (equip.) to SC Plenum Rated Multimode OM1 62.5/125 Mode Conditioning Cable with Corning® Glass - Made in the USA by QuickTreX®

SKU:FA-DLC-DSC-MC-62 5.0/5 (93 Reviews)
$55.42
At a Glance
  • Elliminates Differential Mode Delay (DMD) effects.
  • Use in place of standard equipment-to-cable plant patch cord.
  • Low loss
  • Plenum Rated
  • Custom made in the USA
estimated lead time
Estimated Lead Time
2-4 Business Days
expected receive dates
Receive Between
June 17-26, 2025
Made in USA
TAA Compliant
RoHs Compliant
ISO 9001
Quality Control
Third Party Lab Tested

Add Related Products

Mode conditioning patch cables for Gigabit Ethernet applications are required when Gigabit 1000 Base-LX routers and switches are installed into existing multimode cable plants, which will increase your bandwidth without having to run a whole new fiber optic network.

The need for this patch cord is due to the single-mode launch nature of the -LX or long-wave (1300 nm) transceiver modules used for Gigabit Ethernet. These modules have to operate for both single-mode and multimode fibers. Launching a single-mode laser into the center of a multimode fiber can cause multiple signals to be generated that confuse the receiver at the other end of the fiber. These multiple signals, caused by Differential Mode Delay (DMD) effects, severely limit the cable distance lengths for operating at Gigabit Ethernet. A mode conditioning patch cord eliminates these multiple signals by allowing the single-mode launch to be offset away from the center of a multimode fiber. This offset point creates a launch that is similar to typical multimode LED launches.

The launch of the light coming out of the equipment begins on a Singlemode fiber. The Singlemode fiber is precision fusion spliced to the multimode fiber to a precise core alignment. The light is launched onto the multimode fiber at a precise angle, giving the cable its mode conditioning properties. The fusion splice is protected by a black over-wrap, and on the right side there is an orange and a yellow cable. This is the side of the cable that connects to the gigabit equipment with the yellow Singlemode leg connecting to the transmit side.

  • Environmentally sealed construction
  • Insertion Loss: <0.5
  • Back reflection (Singlemode end)>50dB
  • Optical offset to IEEE 802.5
  • "Masks" Differential Mode Delay (DMD) effects
  • Made in the USA



Things to know when using mode conditioning cables to patch an existing multimode cable plant to your Gigabit LX equipment.

  • Mode conditioning cable are normally used in pairs. That means that you will need a MC cable at each end to connect the equipment to the cable plant. So then these cables are usually ordered in even numbers. The usual reason why someone may order one cable is so they may keep it as a spare.
  • If your gigabit LX switch is equipped with SC or LC connectors, please be sure to connect the yellow leg (Singlemode) of the cable to the transmit side, and the orange leg (multimode) to the receive side of the equipment. It is imperative that this configuration be maintained on both ends. The swap of transmit and receive can only be done at the cable plant side. (see diagram below) diagram
  • Please see Frequently asked questions below for additional important information.

Principals and Basics on how a Mode Conditioning Cable works

Mod cond
cable wire

The launch of the light coming out of the equipment begins on a Singlemode fiber. The Singlemode fiber is precision fusion spliced to the multimode fiber to a precise core alignment (see fig. 1). The light is launched on to the multimode fiber at a precise angle, giving the cable its mode conditioning properties. Looking at the mode conditioning cable assembly in figure 2, we can see that the fusion splice this protected by a black over-wrap. notice that on the right side there is an orange and a yellow cable. This is the side of the cable that connects to the gigabit equipment with the yellow Singlemode leg connecting to the transmit side.

Frequently Asked Questions

Use a Mode Conditioning Cable.
Generally, Mode Conditioning patch cords are required for link distances greater than 984 feet (300 meters). We have heard some case stories where that distance has been lesser or greater. To our experience, the distance of 984 feet (300 meters) is just a benchmark. Your results may vary according to various different equipment and field conditions.

All of our mode conditioning cables are custom made to order . By industry standards, our lead times are very short . The lead time will vary according to the quantity desired , and the production load at the time of the order. Average lead times are as follows:

1 - 2 days for orders of 1 to 12 cables,

3 - 5 days for orders of 12 to 40 cables,

1 week for orders of 40 to 100+ cables.

Note: MT-RJ and MU cables may have higher lead times.

Our 3 meter SC to SC Mode Conditioning patch cable is 100% compatible with the CAB-GELX-625= cable as specified Cisco for their Gigabit equipment, including the Catalyst family.
Some manufacturers of the newer "high end" multimode fibers claim that that their premium line cables will not require mode conditioning. Contact the manufacturer of your installed cable for the answer.
The core of the Singlemode cable is so small than it does not gather enough light for it to be visible without a microscope on the other side. this is a normal condition for any Singlemode cable .
No. Conversions of multimode and Singlemode require Media Converters.

The great demand for increased bandwidth has prompted the release of the 802.3z standard (IEEE) for Gigabit Ethernet over optical fiber. 1000Base-LX requires the use of a launch conditioning patch cord to allow for proper propagation of the laser VCSEL light along the multimode fiber.

The Mode Conditioning Patch Cord is designed for long wave (-LX) multimode applications of Gigabit Ethernet. It is compliant with this IEEE 802.3z application standard. The need for this patch cord is due to the single-mode launch nature of the -LX or long-wave (1300 nm) transceiver modules used for Gigabit Ethernet. These modules have to operate for both single-mode and multimode fibers. Launching a single-mode laser into the center of a multimode fiber can cause multiple signals to be generated that confuse the receiver at the other end of the fiber. These multiple signals, caused by Differential Mode Delay (DMD) effects, severely limit the cable distance lengths for operating Gigabit Ethernet. A mode conditioning patch cord eliminates these multiple signals by allowing the single-mode launch to be offset away from the center of a multimode fiber. This offset point creates a launch that is similar to typical multimode LED launches.

Features

  • IEEE-802.3z (Gigabit Ethernet) Compliant
  • Permanent offset closure
  • Low profile offset closure
  • Low loss
  • Fits existing cabling scheme
  • Easy to use

Benefits

  • "Masks" Differential Mode Delay (DMD) effects
  • Correct offset always maintained
  • Aesthetically pleasing
  • Uses precision ceramic ferrules
  • Use in place of standard equipment-to-cable plant patch cord
  • Functions the same as a standard patch cord

Specifications

Connector Type
LC Equipment to SC Plant
Fiber Mode
9/125µm and 62.5/125µm
Polish Type
UPC to UPC
Operating Wavelength
850/1310nm
Insertion Loss
<0.5dB
Return Loss
>55dB
Back Reflection (Singlemode end)
>50dB
Cable Outside Diameter (OD)
2.0 mm
Jacket Material
Plenum
Operating Temps
-40°C to +75°C
Storage Temps
-40°C to +85°C
