Our QuickTreX® 2 Channel/Fiber Expanded Beam Military Tactical Multimode 10-GIG OM3 50/125 Custom Deployable Fiber Optic Cable Assembly with Ultra Rugged Hermaphroditic Neutrik FIBERFOX Waterproof IP68 Rated Connectors are designed to withstand the harshest of environments. When we receive your custom order, we build the assembly to your specifications using the finest materials to our exacting standards.
All of our custom tactical fiber optic assemblies are always manufactured in the USA by highly trained technicians and include strict quality control and ISO9001 certified manufacturing. We also offer a quick and easy ordering process which includes ultra fast production times. We will keep you informed of your order status from start to finish so you can plan your event accordingly. You will receive an order confirmation immediately, a ship date within 24 hours, and tracking information once your custom assembly ships out.
The ultra rugged hermaphroditic connectors used for these assemblies are ideal for extra harsh environments seen in the following industries: Military, Space, Audio, Broadcast, Mining, Oil, Drilling, and more. The innovative design of the expanded beam connector allows you to deploy your fiber optic cable through the harshest environments where critical networks take place and reliability is an absolute must.

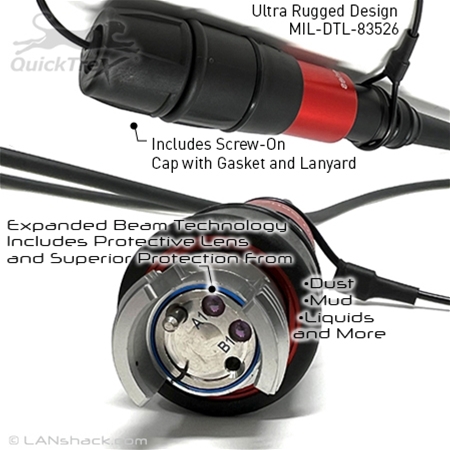

About the Neutrik FIBERFOX Expanded Beam Connector: This connector is designed according to the MIL-DTL-83526 standard and fits to all other connectors with this standard. The expanded beam technology and precise optical alignment creates superior protection from liquids, mud, dust, dirt, and other contamination. The FIBERFOX hermaphroditic coupling eliminates the need for adaptors and female and male mating adapters. Another extremely important benefit of this connector is that it's extremely easy to clean unlike standard fiber optic connectors. Due to the lens over the endface of the fiber optic strand you can easily clean this connector in the field with compressed air or just a clean lint free cloth. For example, these connectors can be dragged through mud, quickly cleaned off with not special tools, and work perfect.
Connector Features:

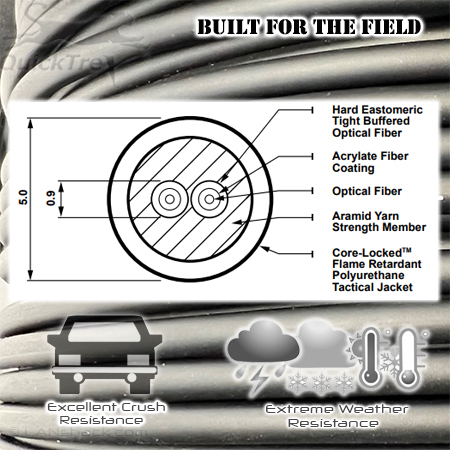

About the Multimode OM3 50/125 Military Tactical Fiber Optic Cable: The military tactical fiber optic cable used offers superior crush resistance of 1,800 N/cm and extreme operating temperatures of -500°C to +85°C. It can withstand heavy vehicle and high foot traffic. It includes a black flame retardant tactical polyurethane jacket with a hard elastomeric buffer material. It also includes bend tolerant multimode OM3 50/125 optical fiber.
Cable Features:
NOTE: Due to the fact that this is a custom made cable assembly, it is non-cancelable and non-returnable. Please choose your product description and specifications carefully.

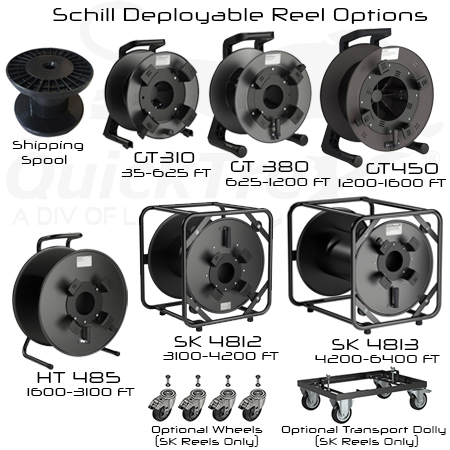

Schill Reels

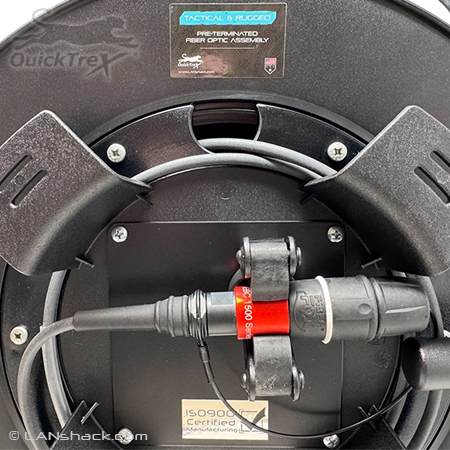

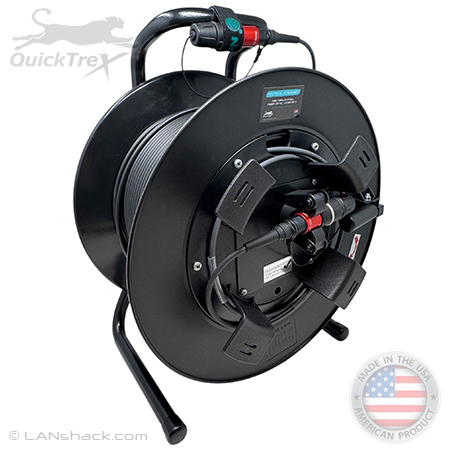

This tactical fiber is commonly used for deployment situations where the fiber needs to be deployed fast and reeled back up when done. This is why we recommend using one of the Schill Reel options for your tactical assembly. We have two different options depending on the length of your assembly. Please choose the correct one per the length of your fiber because each reel is sized to hold a certain length. We also have a no reel option for shorter lengths, and a basic shipping spool for situations where a deployment reel isn't needed.
Lead time: Varies usually between 3 to 5 days. Call or email Sales at 888-568-1230 option 1 for a current estimated time.
