OpticalCON QUAD Pre-Terminated Assemblies & Accessories

4 Fiber Extreme Mil-Tac (Double Jacketed) Multimode OM3 50/125 Custom Deployable Fiber Optic Assembly with Ruggedized Neutrik OpticalCON Quad Waterproof IP65 Rated Connectors - Made in the USA by QuickTreX®

SKU:QT-MILTAC-OC-QUAD-M3 5.0/5 (250 Reviews)
  • • Rapid Deployment
  • • Temp Networks
  • • Indoor/Outdoor Rated
$1,193.50
Other Strands
At a Glance
  • IP65 Rated Connectors
  • 10-1890 Foot Length Options
  • Polyurethane Jacket
  • Indoor/Outdoor Rated
  • High Impact, Crush, & Cut Resistant
  • Kevlar Reinforced
  • Designed to Withstand Harsh Environments
  • Perfect for Setting Up Temporary Networks
estimated lead time
Estimated Lead Time
3-5 Business Days
expected receive dates
Receive Between
June 18-27, 2025
Made in USA
TAA Compliant
RoHs Compliant
ISO 9001
Quality Control
Third Party Lab Tested

Add Related Products

Our QuickTrex 4 Fiber Extreme Mil-Tac (Double Jacketed) opticalCON QUAD® fiber optic assemblies harness the power of the ruggedized Neutrik® brand tactical connector with extreme tactical grade fiber to provide one of the most ruggedized fiber optic assemblies we have to offer. QuickTreX® Extreme Mil-Tac Deployable Pre-terminated Fiber Optic Assemblies are designed to withstand the most extreme conditions and include a double shielding of Kevlar and polyurethane. The cable used for these assemblies has been tested to withstand the most extreme conditions that may take place when in the field such as heavy vehicle traffic, severe blunt force, and sharp bends. These assemblies are military approved and are ideal for rapid emergency battlefield network deployment. These assemblies are also perfect for other extreme harsh environments experienced in mining, drilling, and similar industries.

The opticalCON Quad connector includes 4 strand of fiber in a ruggedized and durable all-metal housing. A spring-loaded push-pull locking mechanism provides superior protection for the connectors, and the fiber provides excellent cable retention utilizing aramid yarn. An automatically operated sealing cover protects the connectors from all contaminants like dirt and dust. These connectors are ultra ruggedized and they serve as a pull grip for deployment of your assembly.

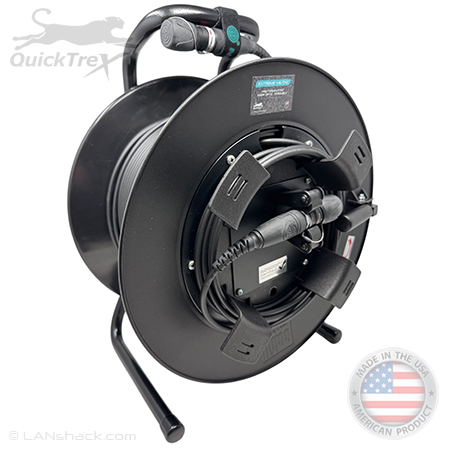

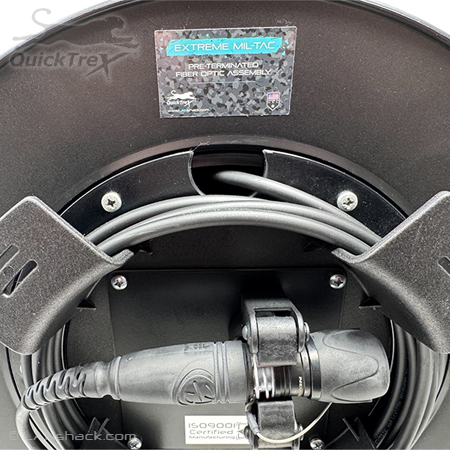

Our Mil-Tac Assemblies can optionally be installed on heavy duty Schill deployment reels and are designed for quick deployment and retrieval. These Schill reels include a door which houses the back end connector for safe and secure storage while not in use. This assembly is made in the USA by skilled technicians under controlled conditions, and comes to you fully tested and ready for immediate use. The test results are placed on the inside of the door or printed out if no reel is used.

Features:

  • Ultra Ruggedized Connectors
  • Rugged 4-channel fiber optic connection system
  • Contaminant protected fiber optic connection system
  • Waterproof - IP65 safety standard in mated condition
  • Accommodates standard LC-Duplex connectors
  • Cable connector features rugged all metal housing and heavy-duty cable retention
  • Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
  • Reliable Push-Pull locking mechanism
  • Easy to clean, no special tools required
  • Tested to meet MIL-PRF-85045
  • High impact and crush resistant - it can withstand a very heavy vehicle and high foot traffic
  • Can withstand sharp bends and blunt force
  • Performance in extreme temperature range

Schill Reels
This tactical fiber is commonly used for deployment situations where the fiber needs to be deployed fast and reeled back up when done. Therefore we recommend using one of the Schill Reel options for your tactical assembly. We have multiple options depending on the length of your assembly. Please choose the correct one per the length of your fiber because each reel is sized to hold a certain length. We also have a no reel option for shorter lengths, and a basic shipping spool for situations where a deployment reel isn't needed.

Specifications

Fiber Type
Multimode OM3 50/125
Fiber Count
4
Fiber Core Size
50/125 - 50µm
Wavelength
850/1300nm
Bandwidth
1500Mhz @ 850nm / km | 500Mhz @ 1300nm / km
Jacket Material
Polyurethane
Jacket Rating
Extreme Mil-Tac (Double Jacketed)
Outer Jacket Color
Black
Strength Member
Aramid Yarn
Length Options
10 - 1890 ft
Testing
IL Max 0.3dB, Min -0.1dB
Storage Temps
-55°C to +85°C
Operating Temps
-40°C to +70°C
Cable Diameter
9.2 mm
Weight
0.055 lbs. / ft
Min. Bend Radius / Installation
13.8 cm (5.43 in)
Min. Bend Radius / Operation
9.2 cm (3.62 in)
Max. Tensile Force
2200 N (short-term)
Application
Indoor/Outdoor

Resources

PDF Document
Mil-Tac opticalCON Assembly Build Specs
SpecSheet

PDF Document
Cable Manufacture Specs: 4 Fiber Extreme Mil-Tac Cable Cutsheet
Asset

PDF Document
General: opticalCON QUAD Cable Assembly Technical Info
Asset

PDF Document
General: OpticalCON QUAD Handling Instructions
Asset

PDF Document
General: opticalCON QUAD Technical Paper
Asset
