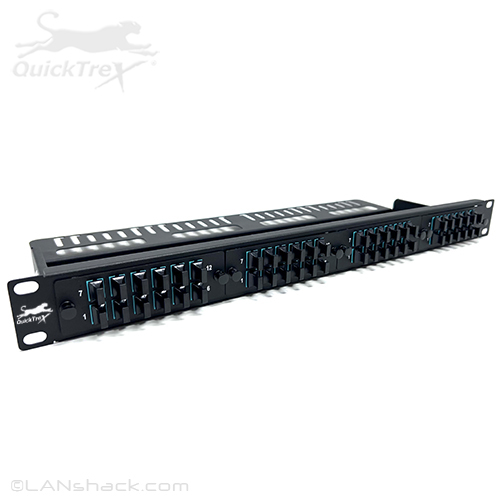

4 panel (1U) Rack Mount Ultra High Density (UHD) Chassis Fiber Optic Patch Panel with Cable Support/Management by QuickTreX® for Mounting of UHD MTP/MPO, SC, and LC Adapter Panels by QuickTreX

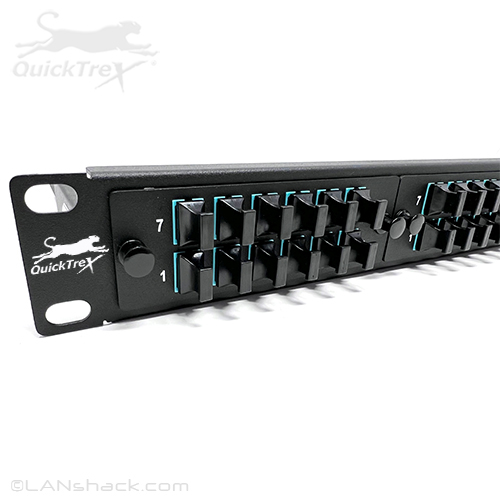

Our QuickTreX® 4 panel (1U) Rack Mount Ultra High Density (UHD) Chassis Patch Panel is for interconnectivity and termination of optical fibers. It's especially perfect for ultra high density fiber installations often seen in data centers, campus server rooms, and other similar settings.  This fiber optic patch panel can hold up to (4) 12 fiber MPO adapter panels. With that said if, using 24 fiber MTP or MPO cables, it can hold up to 1,152 fibers all inside a 1U rack space.  This panel truly provides an ultra high density option for coupling your backbone fiber optic assembly and fiber optic patch cables.  You can also mix different types of fiber optic connectors and we offer also offer blank plates for panel slots that are not used.

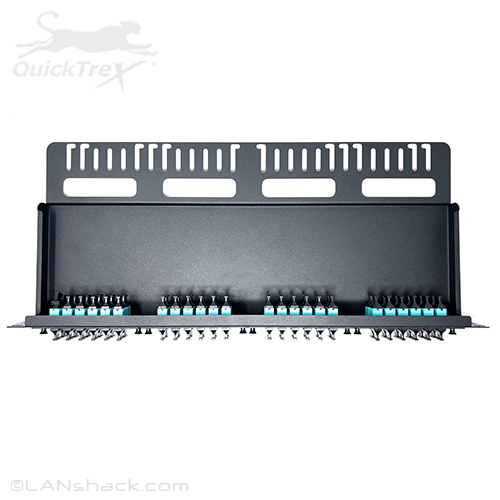

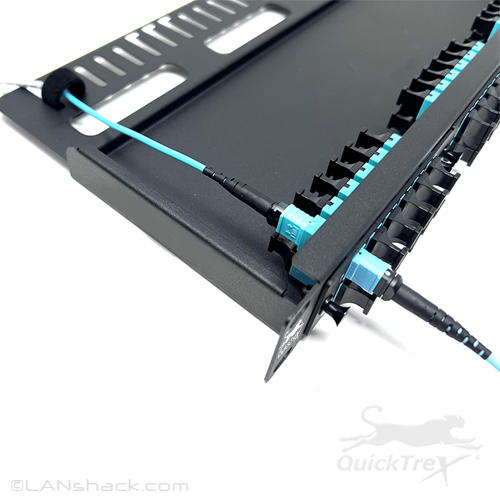

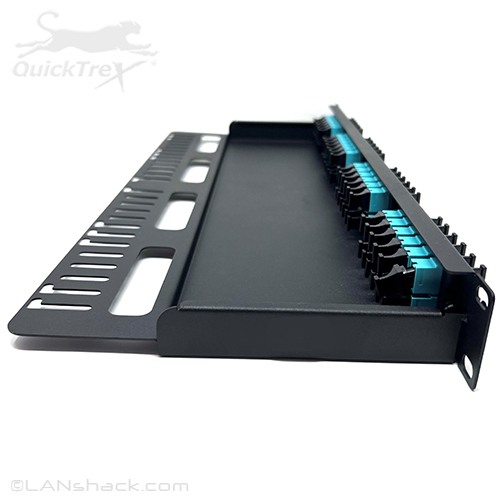

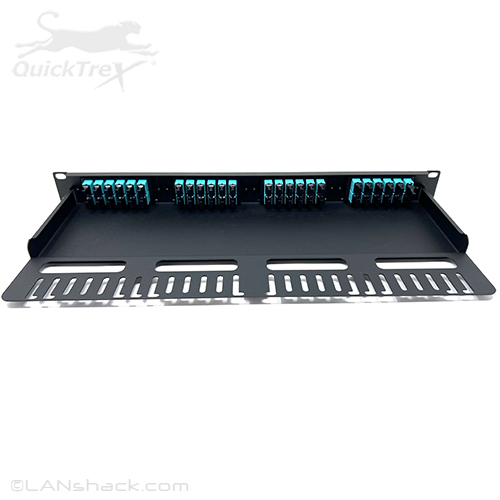

This fiber optic patch panel also includes a built in cable support / management bracket so you can secure and route your cables through the back of the panel.  The bracket includes both grooves for hook and loop cable straps and oval holes for routing cables up and down.

This product can support a wide array of up to (4) UHD (Ultra High Density) chassis style adapter panels. It's designed to fit standard 19" racks.

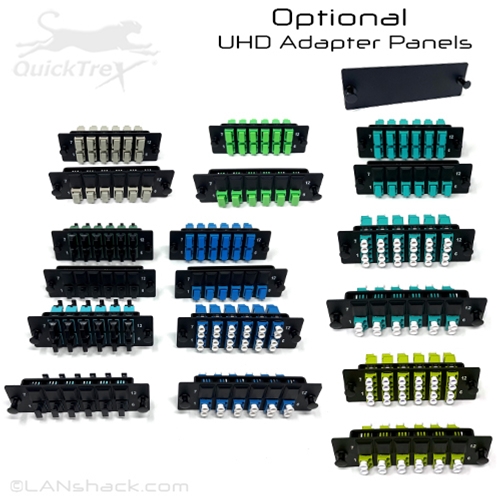

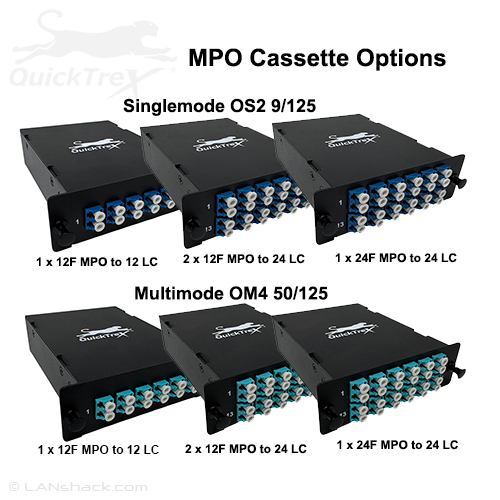

Our available ultra high density (UHD) fiber optic adapter panels include:

MTP/MPO

• 6 MTP/MPO Singlemode APC (Green)
• 12 MTP/MPO Singlemode APC (Green)
• 6 MTP/MPO Multimode 50/125 OM3/4 (Aqua)
• 12 MTP/MPO Multimode 50/125 OM3/4 (Aqua)

Multimode 62.5/125 OM1 (Beige)

• 6 SC Multimode 62.5/125 OM1
• 12 SC Multimode 62.5/125 OM1

Multimode 50/125 OM3/4 (Aqua)

• 12 LC Multimode 50/125 OM2/OM3/OM4
• 24LC Multimode 50/125 OM2/OM3/OM4
• 6 SC Multimode 50/125 OM2/OM3/OM4
• 12 SC Multimode 50/125 OM2/OM3/OM4

Singlemode UPC 9/125 (Blue)

• 12 LC UPC Singlemode
• 24 LC UPC Singlemode
• 6 SC UPC Singlemode
• 12 SC UPC Singlemode

Singlemode UPC 9/125 (Green)

• 12 LC APC Singlemode
• 24 LC APC Singlemode
• 6 SC APC Singlemode
• 12 SC APC Singlemode

Blank Cover Plate

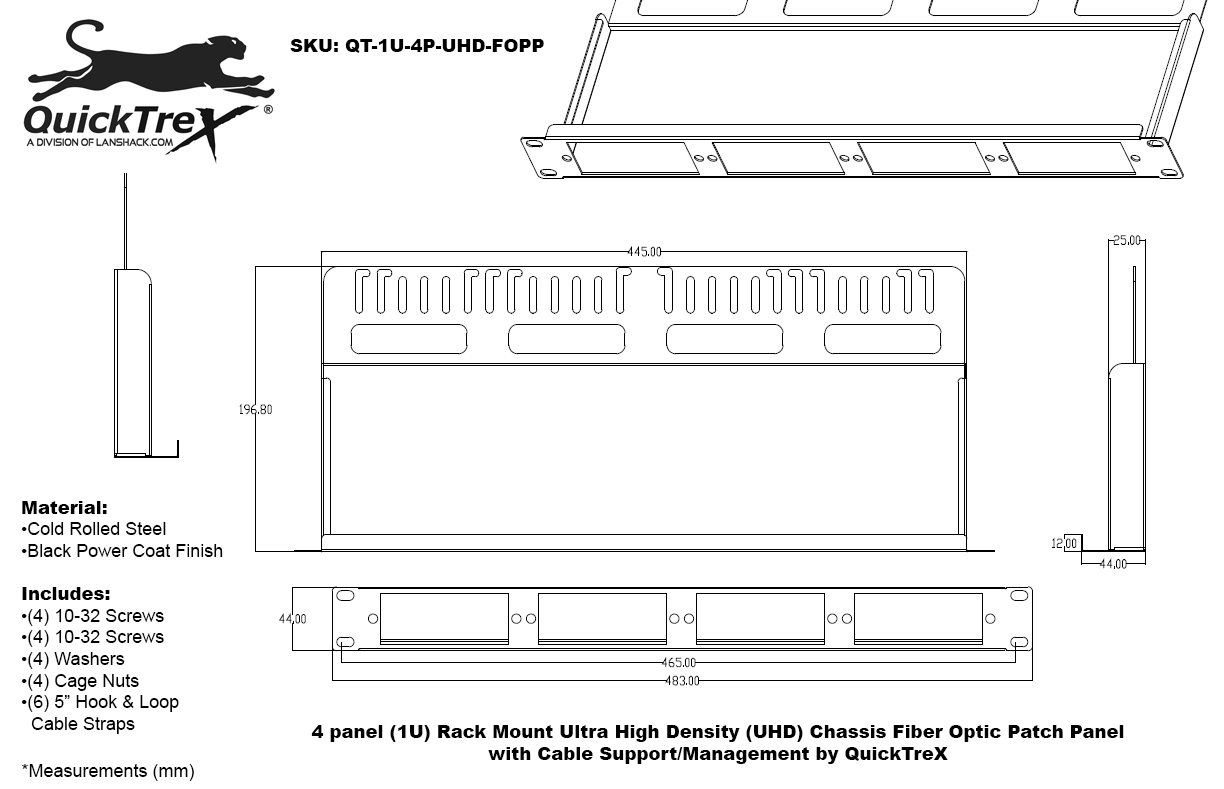

SPECS

Dimensions: 19" W x 7.75"D x 1.75" H
Panels: (4) UHD (Ultra High Density) Fiber Optic Adapter Panels (see dropdown)
Material: Cold Rolled Steel
Coating: Black Matte Powder Coat Finish

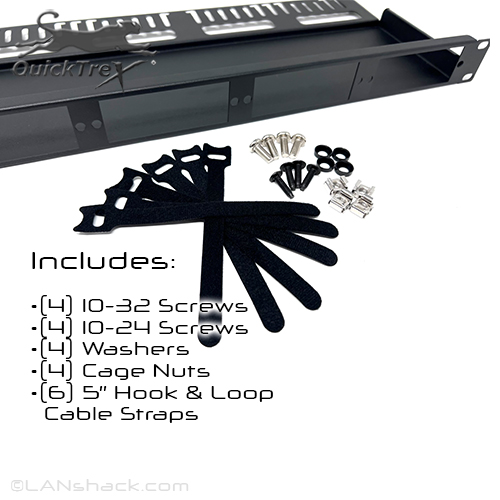

INCLUDES

(4) 10-32 Screws
(4) 10-32 Screws
(4) Washers
(4) Cage Nuts
(6) 5” Hook & Loop Cable Straps
