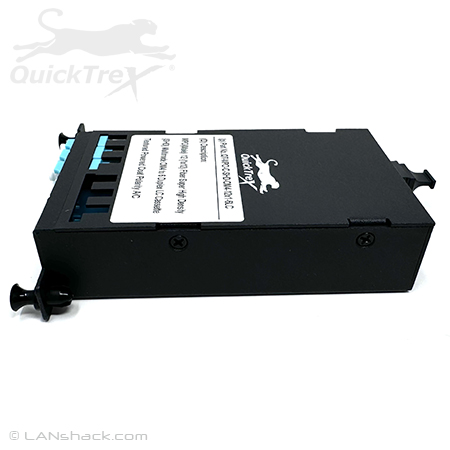

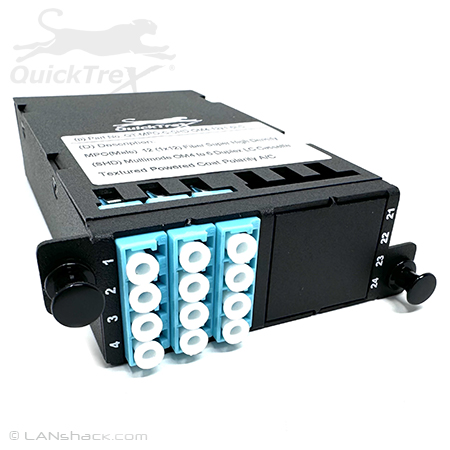

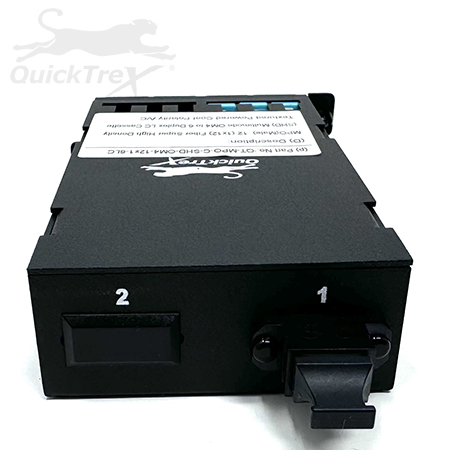

This QuickTreX MPO Male 12 Fiber (1 X 12 MPO) to 12 LC (6 Duplex Adapters) Multimode OM4 Super High Density (SHD) Cassette is designed to take your 12 fiber MTP® or MPO Trunk assembly with a female MTP connectors and transition it to 12 LC (6 Duplex) adapters. On the back side of the cassette you have (1) 12 Fiber Male MPO connector and on the front side you have 12 separate LC connectors. From the front of your cassette you then patch out with standard duplex (or simplex) fiber optic patch cables to your equipment such as an SFP module or fiber optic media converter.
This Super High Density (SHD) product line is designed to accommodate high fiber strand counts. This product line is perfect for data centers, corporate campuses, or any very high density installation. We offer 2 Super High Density (SHD) Enclosures. Our 5 panel (1U) rack mount enclosure can house up to 120 fibers and out 14 panel (2U) can house up to 336 fibers. We offer blank panels for slots not being used.
This cassette utilizes a standard polarity A (Straight Through) fiber pin out.

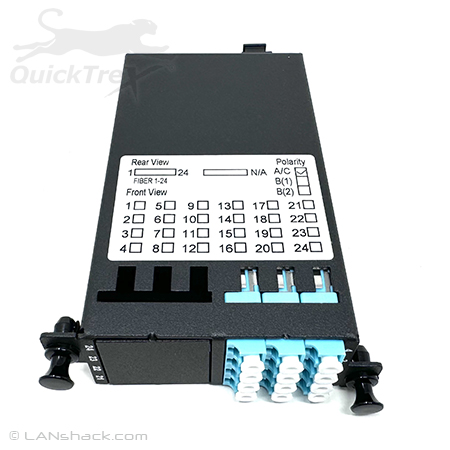

Note: The 4 row adapter (slot 13-16) is not used. It serves as a filler as seen below.
NOTE: This cassette has a male MPO connector and requires a cable assebmly with a female MPO/MTP connector.
This cassette is designed to fit our super high density (SHD) chassis fiber enclosures. It will not fit a standard LGX chassis enclosure.
MTP® is a registered trademark of US Conec Ltd.

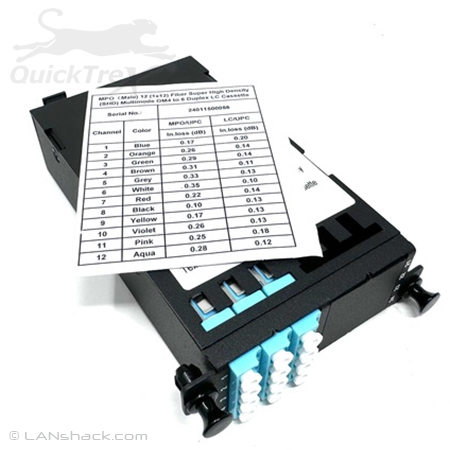

At LANshack, we specialize in custom high density pre-terminated MTP® Trunks and Fanouts and also offer a full variety of MTP cassettes and enclosures to perfect your high density custom fiber optic installation. MTP or Multi-fiber Push-On Connectors include 12 or 24 fibers all in one connector. They are perfect for high denisty applicatoins often seen in data centers, campuses, or other similar commercial network settings. We offer pre-terminated MTP trunk assemblies from 12 fibers all the way up to 288 fibers. MTP Assemblies can be transitioned to standard fiber optic connectors with MTP/MPO cassettes or via a MTP adapter/coupler and MTP fanout cable. We also offer any jacket type including: indoor, indoor armored, indoor/outdoor, indoor/outdoor armored, outdoor OSP, outdoor armored OSP. These jackets types are designed to work with all installations whether it be indoor, underground conduit, direct burial, or overhead distribution. Our custom MTP trunk and fanout assemblies always include genuine US Conec connectors and unless otherwise stated Corning glass. They come to you fully tested with test report and offer a true plug-and-play solution for high density installations. Our custom assemblies are made to order in the USA with ISO certified manufacturing.
