Cat 6A 10G Shielded Tactical & Rugged Deployable Custom Ethernet Assembly - Made in the USA by QuickTreX®

For rapid deployment of copper cabling our QuickTreX® Cat 6A Shielded Tactical and Rugged Ethernet Assemblies are designed to withstand the harshest of environments. They are excellent for setting up temporary networks needed for test result gathering, demonstrations, concerts, festivals, or any other outdoor event. They are also excellent for a backup backbone to your critical network and are rated for 10 gigabit speeds.  Our Tactical and Rugged Assemblies come on optional heavy duty Schill deployment reels offered in two different options. These Ethernet assemblies are designed to be quickly deployed and retrieved. The GT310 Schill reels includes a door which houses the back end of the connectors connectors for safe and secure storage while not in use.  The GT235 Schill Reel is slightly smaller in size and holds up to 230ft of cable.  This reel does not have a hinged door but instead includes ears to wrap your back end of the cable around.

The cabling used for these tactical Ethernet assemblies has a continuous flex-cycle, and tactical grade industrial polyurethane jacket which withstands harsh environments and is widely known as the best in cut, abrasion, and moisture resistance. These cable assemblies are double shielded for increased signal isolation to prevent outside interference and offer tighter specifications for eliminating crosstalk and noise.

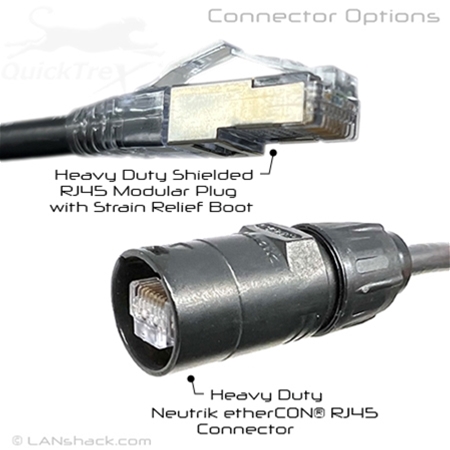

We offer both standard shielded RJ45 connector and the Neutrik etherECON® cable connector which is a conventional RJ45 connector that offers an extremely robust waterproof IP65 rated lockable solution when mated with a compatible Neutrik etherCON chassis connector.  The Neutrik etherCON® connector has a circular hard metal shell and a locking latch. The cable plug is always male and is designed to fit standard female etherCON panel connector chassis. The chassis connector allows for use with both an etherCON connector and a standard RJ-45 plug.

Features:

• Made in the USA by highly trained technicians
• ISO9001 certified manufacturing
• High impact and crush resistant (can withstand a heavy vehicle and high foot traffic)
• Ultra Flexible
• Double Shielded for extra protection from crosstalk
• Polyurethane outer jacket with polyethylene insulation
• UV Resistant Jacket
• Factory terminations and testing
• 100% continuity testing with 15% AQL on attenuation NEXT, return loss
• Impedance testing by and HP network analyzer
• Component certified for lengths 65 feet or under
• Channel Certified for any length over 65 feet
• Complies with EIA/TIA 568B Cat6A specifications
• Rated for up to 10G
• Performance in wide temperature range (75°C Max to -40°C Min)
• RoHS Compliant

For our build specifications and cable technical cutsheet please see under the specifications tab.

NOTE: Due to the fact that this is a custom-made cable assembly, it is non-cancelable and non-returnable. Please choose your selections carefully.

Deployment Reels
We have 2 different options depending on the length of your assembly. Please choose the correct one per the length of your assembly.  Each reel is sized to hold a certain length. We also have a no reel option for shorter lengths, and a basic shipping spools for situations where a deployment reel isn't needed.

Lead Time: Varies usually between 2 to 3 days. Call or email Sales at 888-568-1230 option 1 for a current estimated time.
