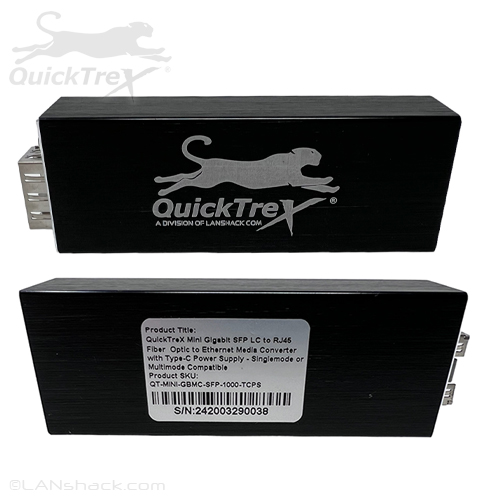

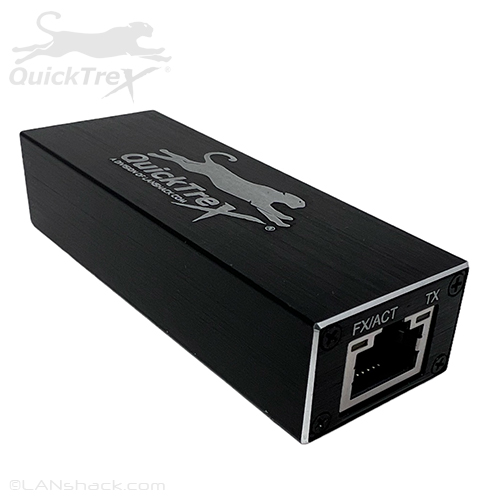

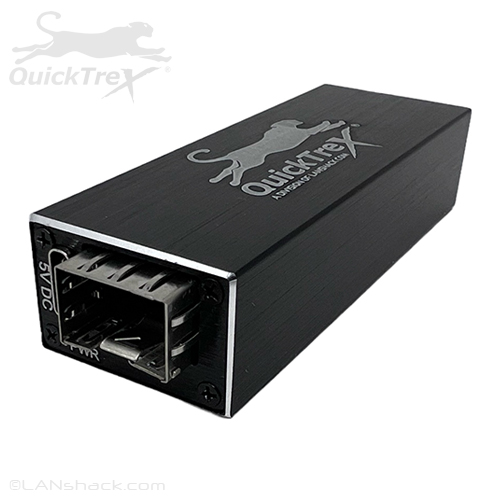

QuickTreX® Mini Gigabit SFP LC to RJ45 Fiber Optic to Ethernet Media Converter with USB Type-C Power Supply - Singlemode or Multimode Compatible

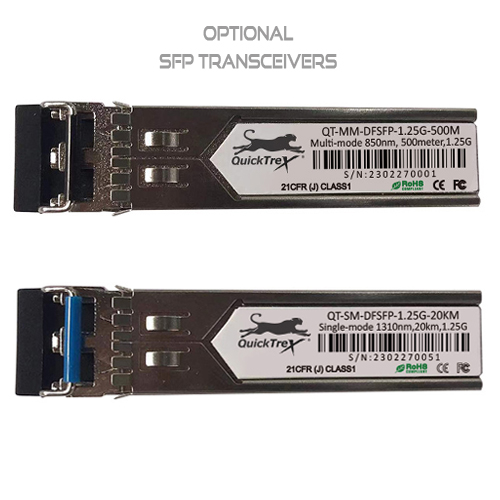

This QuickTreX® Mini Gigabit SFP LC to RJ45 Fiber Optic to Ethernet Media Converter works with both singlemode or multimode fiber.  This media converter has a super compact design so making it a perfect choice for fiber to the desk applications or installs that have limited space available.  Another excellent feature is that it includes a USB Type-C power supply making it perfect for powering with a desktop or laptop computer.  If powered by a device such as a laptop it will shut down automatically with the laptop saving energy.  Also included is a 110 USB block to accept the USB plug if a USB power supply is not available. Our multimode (850nm / 500m) or singlemode (1310nm / 20Km) SFP for a easy plug-and-play solution to your pre-terminated fiber optic assembly.  The led lights indicate the speed of the network being transmitted. This mini media converter can be used in the field work such as test gathering or demonstrations.  It's also great for data rooms, R&D laboratories, data centers, and more.  It provides protections against lightning and static electricity for Ethernet networks and main network systems.

FEATURES

• Ultra Compact Design
• USB Type-C Power Supply
• Includes USB to Type-C Cable and USB Power Block
• Works with both Singlemode and Multimode Fiber
• Accepts standard hot pluggable SFP
• RJ45 Supports Auto MDO/MDI-X Function
• Auto-negotiation speed, half/full-duplex
• Each port has the complete LED Indicator light
• Requires no configuration and will instantly operate as soon as you power it up
• Low power consumption

TECHNICAL SPECIFICATIONS

Standards: IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab
Copper Port: One RJ45 port: for connecting with STP/UTP cat5/5E/6/6A/7/8 twisted pairs
Fiber Port: SFP - 100/1000M adaptive
Performance: 10/100/1000Mbps Gigabit Ethernet
Wavelength: 850nm/1310nm/1550nm(Based on SFP Module used)

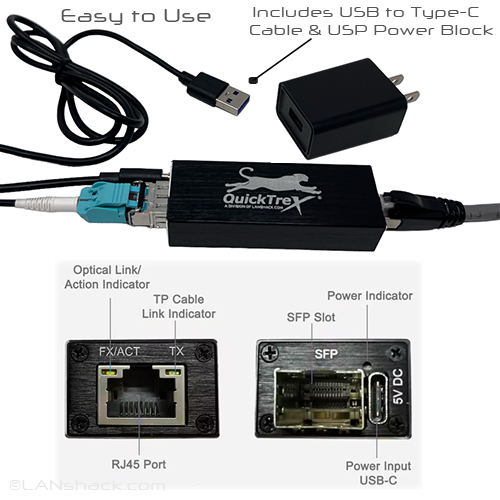

LED Indicator: PWR (Power supply)  / TX (LINK100/1000, TP cable rate 100/1000M) / FX/ACT (Optical link action /TP cable packet forwarding action)
Power: DC 5~15V (Type-C)
Operating Temperature: 0 ˚C ~ +45 ˚C
MTBF (Mean Time Between Failures): 100,000 hours

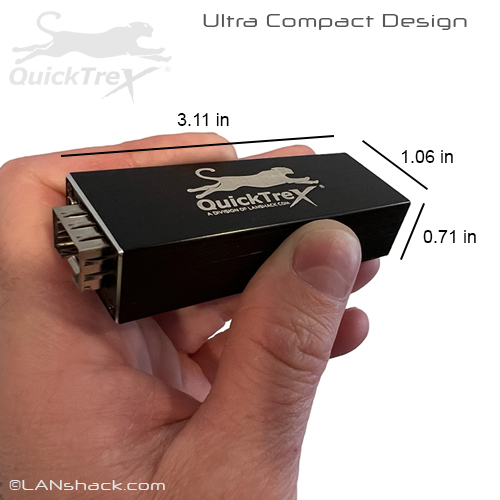

Physical Characteristics: Dimension: 78 × 27 × 18 mm
Weight: 46g
Color: Black
Material: Aluminum Case
