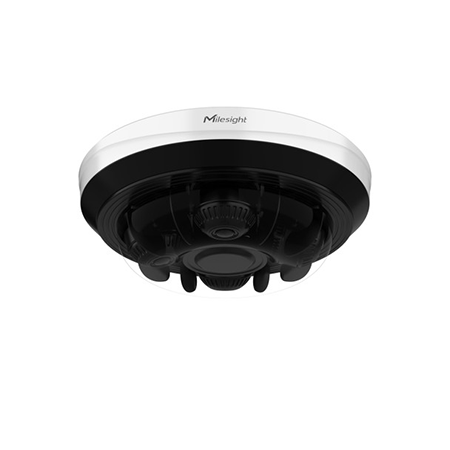

4x5MP AI Multi-directional Network Camera
Key Features
The 4x5MP AI Multi-directional Network Camera is designed to offer enhanced performance and convenience in modern surveillance scenarios. Key features include:
- NDAA Compliance: Fully NDAA-compliant, making it suitable for government and defense projects.
- Scooter Detection: Provides high-precision scooter detection using deep learning algorithms, improving road safety.
- Flexible Positioning: Each of the four lenses supports independent angle adjustments for optimal orientation.
- Built-in 360° IR LED: Equipped with six embedded IR lights and an IR distance of up to 30 meters for exceptional image quality.
- Integrated Interface Management: Neatly combines the power interface, PoE port, and other interfaces in the base.
- 2TB Storage Support: Compatible with external microSD/SDHC/SDXC cards, supporting up to 2TB of storage.
- Simplified Configuration: Features a WiFi module for easy setup in scenarios where wiring is not feasible.
Multi-directional View
Comprehensive 360° Coverage
Each sensor is equipped with a motorized focus lens (3.8-8.1 mm) and a 3-axis design along a circular track, ensuring complete 360° coverage. With six IR-cut filters and super WDR technology, the camera delivers optimum image quality and unparalleled visibility in high-contrast lighting conditions.
Comprehensive Integration
This camera supports edge AI analytics and integrates four front-end cameras through Milesight VMS Enterprise. This system allows unified management of multiple streams under a single license, reducing management costs and streamlining operations.
360° Flexible Rotation
The camera’s body supports a +120° horizontal pivot, +30° horizontal swivel, +15° to +105° vertical tilt, and a +90° lens rotation, offering highly flexible positioning for capturing the ideal angles.
Excellent Structural Design
An innovative modular design ensures quick and easy installation using a snap-fit mechanism. Additionally, short-circuit protection enhances reliability, contributing to cost-effective usage.
Specifications
| Focal Length | 3mm~9mm @F1.6 |
| Mount | φ14 |
| Field of View | H92° ~ H40° / D116° ~ D49° / V67° ~ V30° |
| Focus Control | Remote |
| Camera Angle Adjustment | Pan ±120°, Tilt +15° to +105°, Rotation ±90°, Twist ±30° |
| Max. Image Resolution | 2592x1944 (5MP) x4 |
| Main Video Stream | 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720); 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Video Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240); 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Ethernet Port | 1*RJ45 10M/100M/1000M |
| Operating Temperature | -40℃~60℃ |
| Power Supply | PoE(802.3at)/DC 12V |
| Storage | 2 microSD/SDHC/SDXC cards, up to 2TB total |
| Body Dimensions | φ280mm X 97mm |
| Weight | 3.1Kg |
The 4x5MP AI Multi-directional Network Camera is a game-changing solution for achieving seamless, flexible surveillance in diverse environments. Its advanced features and robust design make it an ideal choice for modern security challenges.
