Our QuickTrex® opticalCON MTP® fiber optic assembly harnesses the power of the Neutrik® brand tactical connector with tactical grade fiber to provide a superior rugged product. QuickTreX® Tactical & Rugged Pre-Terminated Fiber Optic Assemblies are designed to withstand the harshest of environments. This assembly is a rugged and lightweight 12-channel mobile field cable which is military approved, and is ideal for audio and broadcast networks.
The opticalCON MTP® cable connector accommodates 12 optical fibers (multimode PC or single mode APC) based on conventional and proven MTP® connectivity, protected by a ruggedized and durable all-metal housing. A spring loaded push-pull locking mechanism provides excellent cable retention utilizing aramid yarn, and an automatically operated sealing cover protects the connectors from all contaminants like dirt and dust.

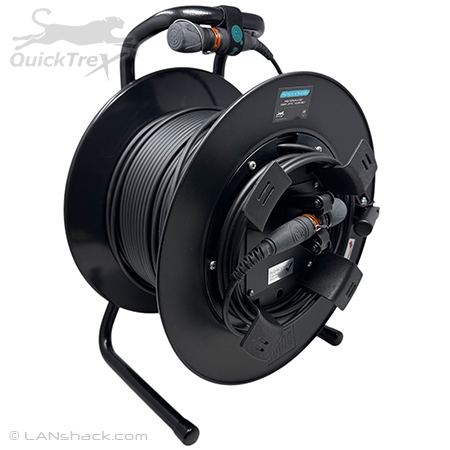

Our Tactical and Rugged Assemblies can optionally be installed on a heavy duty Schill deployment reel, designed for quick deployment and retrieval. These Schill reels include a door which houses the connectors for safe and secure storage while not in use. This assembly is made in the USA by skilled technicians under controlled conditions, and comes to you fully tested and ready for immediate use. The test results are placed on the inside of the door.
Features:
For Point-to-Point multichannel routing
Ruggedized and dirt-protected 12-channel fiber optic connection system
Wiring Type A
Ruggedized and dirt protected fiber optic connection system
Waterproof and dust proof- IP65 safety standard in mated condition
Cable connector features rugged all metal housing and heavy-duty cable retention
Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
Reliable Push-Pull locking mechanism
Easy to clean, no special tools required
Tested to meet MIL-PRF-85045
High impact and crush resistant - it can withstand a heavy vehicle and high foot traffic
Polyurethane outer jacket
Quality made in the USA by Skilled Technicians
The MTP® is a multichannel fiber optic connector based on MPO (“Multifiber Push On”) technology (IEC-61754-7). Breakout / Master cables to standard connectors as LC, SC, ST are available in various length.
NOTE: Due to the fact that this is a custom made cable assembly, it is non-cancelable and non-returnable. Please choose your product description and specifications carefully.
Schill Reels This tactical fiber is commonly used for deployment situations where the fiber needs to be deployed fast and reeled back up when done. Therefore we recommend using one of the Schill Reel options for your tactical assembly. We have three different options depending on the length of your assembly. Please choose the correct one per the length of your fiber because each reel is sized to hold a certain length. We also have a no reel option for shorter lengths, and a basic shipping spool for situations where a deployment reel isn't needed.
Lead time:Varies usually between 2 to 3 days. Call or email Sales at 888-568-1230 option 1 for a current estimated time.
