Custom Uniboot and Push-pull Tab Fiber Optic Patch Cables USA Made with Corning® Glass by QuickTreX®

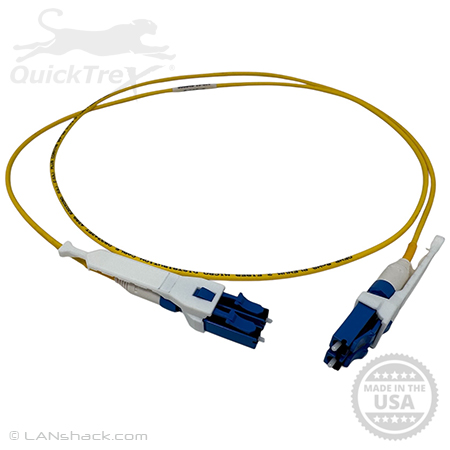

Custom Uniboot and Push-Pull Tab Plenum Rated Singlemode 9/125 Premium Duplex Fiber Optic Patch Cable with Corning® Glass - Made in the USA by QuickTreX®

SKU:QT-CFOPC-SM-SEZF 5.0/5 (97 Reviews)
  • • Indoor Plenum Rated
$37.87
At a Glance
  • Includes Genuine Corning® Glass
  • Individually Serialized
  • Test Results Included
estimated lead time
Estimated Lead Time
3-5 business days
expected receive dates
Receive Between
July 23-August 1, 2025

Add Related Products

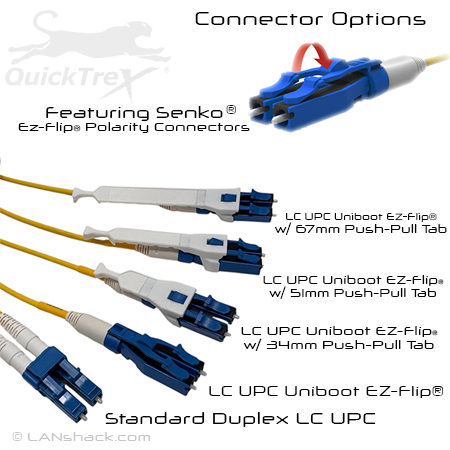

Our QuickTreX® Custom Uniboot and Push-Pull Tab Indoor Plenum Rated Singlemode 9/125 Premium Duplex Fiber Optic Patch Cables are custom made to order in the USA by highly trained technicians and are constructed with premium components. Because these patch cables are made to order, you can choose any length from 6 inches up to 30 meters and any connector type to fit your custom installation needs. Our connector options include LC UPC Uniboot, LC UPC Uniboot Connector with 34mm, 51mm, and 67mm Push-Pull Tabs. The Senko® LC EZ-Flip® connectors we use on these cables include a distinctive rotary latch feature sets it apart as the world’s most user-friendly and swift LC polarity-switching connector. These connectors also include a compact design and provide optimum performance. These connectors are perfect for high density installations often seen in data centers. The push-pull tab allows you to easily remove and re-insert connectors for maintenance or moving of patch cables. We also offer standard LC connectors in case you need one end simplexed.

We keep you informed of your order status from start to finish so you can plan your installation accordingly. You will receive an order confirmation immediately, a ship date within 24 hours, and tracking information once your custom cables ship out. We make our custom fiber patch cables along side our custom fiber optic distribution assemblies so you can be assured that the same premium components and quality control are in place. Fiber optic patch cables are the last critical link in connecting your network.

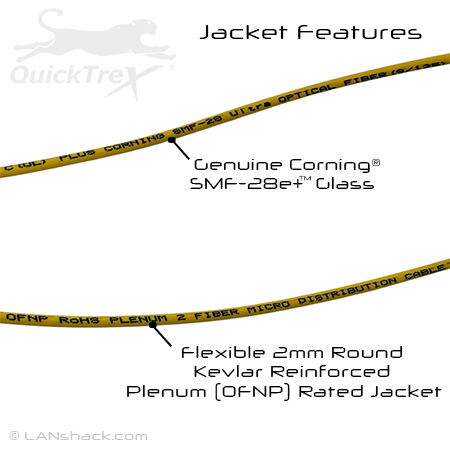

Our QuickTreX® singlemode OS2 9/125 patch cables always include Genuine Corning SMF-28e+ glass and premium connectors with ceramic ferrules for increased durability and accuracy. These fiber optic patch cables offer premium precision, making them a popular choice for critical installations. They also feature a 2mm indoor plenum (OFNP) rated round super flexible jacket which make them more versatile and usable in all indoor environments versus regular riser rated (ONFR) or standard PVC cables which are commonly seen in most imported stock patch cables. A cable rated for plenum installation will have low-smoke characteristics as defined by the NFPA (National Fire Protection Agency).

QuickTreX® fiber optic jumpers are fully tested and come with a test report to guarantee top performance. Our strict testing standards mandate a maximum allowable insertion loss if 0.02 dB (or less). Each connector is visually inspected with a 400x microscope for any surface or interior cracks, scratches, contaminants, or other imperfections which can pick up defects that insertion loss testing alone may miss. Each cable includes a label around the jacket which has an individual serial number and part number for easy identification and traceability. The cables are sealed in individual bags and the test results are included with each individual cable. Our manufacturing process includes strict quality control and is ISO9000 certified.

Features:

  • The cable is made with Genuine Singlemode 9/125 Corning SMF-28e+  glass for superior performance
  • Fiber Wavelength - 1310/1550nm
  • Yellow Duplex 2.0mm Indoor Plenum Rated Round Jacket
  • Jacket print ensures product identification and fiber type
  • Premium Senko® EZ-Flip® Uniboot and Uniboot Push-Pull Tab Connectors
  • Insertion loss testing performed on every cable with strict maximum allowable loss if 0.02 dB (or less)
  • Each connector is visually inspected with a 400x microscope for any surface or interior cracks, scratches, contaminants, or other imperfections

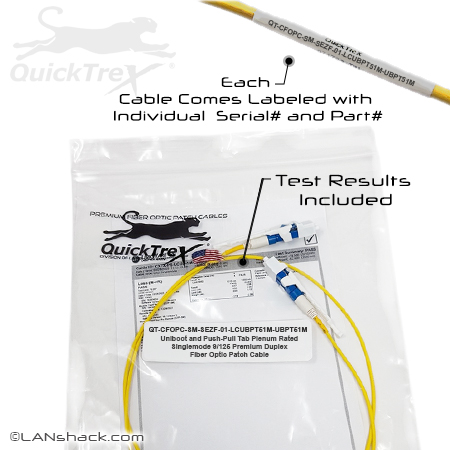

  • All cables are individually labelled with an individual serial number and the QuickTreX® part number for easy identification and traceability
  • Each cable comes with the test results
  • All component and materials meet the EU RoHS and REACH Directive standards
  • Guaranteed top performance

Specifications

Fiber Count
2
Fiber Type
SMF-28® Ultra
Strength Member
Aramid Yarn
Fiber Core Size
9/125µm
Jacket Material
PVC
Nominal Outer Diameter
1.95 mm
Bend Radius (Installation)
3.0 cm
Bend Radius (Operation)
2.0 cm
Weight
18 lbs/km
Max. Attenuation
0.4 dB/km @ 1550nm
Mode-Field Diameter (1310/1550nm)
9.2 / 10.4µm
Numerical Aperture
0.14
Link Length @ 1550nm (1GB/s / 10GB/s)
10,000m / 5,000m
Storage Temperatures
-40°C to +70°C
Operating Temperatures
0°C to +70°C
