OpticalCON MTP Pre-Terminated Assemblies & Accessories

12 Fiber Broadcast Tactical Singlemode Custom Deployable Fiber Optic Assembly with Ruggedized Neutrik OpticalCON MTP (Female/Female - Method A) Waterproof IP65 Rated Connectors - Made in the USA by QuickTreX®

SKU:QT-OC-MTP-S 5.0/5 (279 Reviews)
  • • Rapid Deployment
  • • Temp Networks
  • • Indoor/Outdoor Rated
$2,518.75
At a Glance
  • IP65 Rated Connectors
  • 10-2380 Foot Length Options
  • Polyurethane Jacket
  • Indoor/Outdoor Rated
  • High Impact & Crush Resistant
  • Designed to Withstand Harsh Environments
  • Perfect for Setting Up Temporary Networks
estimated lead time
Estimated Lead Time
3-5 Business Days
expected receive dates
Receive Between
July 22-31, 2025
Made in USA
TAA Compliant
RoHs Compliant
ISO 9001
Quality Control
Third Party Lab Tested

Add Related Products

*OpticalCON MTP 12core Singlemode is always APC (Angle Polished Connector)*

Our QuickTrex® opticalCON MTP® fiber optic assembly harnesses the power of the Neutrik® brand tactical connector with tactical grade fiber to provide a superior rugged product. QuickTreX® Tactical & Rugged Pre-Terminated Fiber Optic Assemblies are designed to withstand the harshest of environments. This assembly is a rugged and lightweight 12-channel mobile field cable which is military approved, and is ideal for audio and broadcast networks.

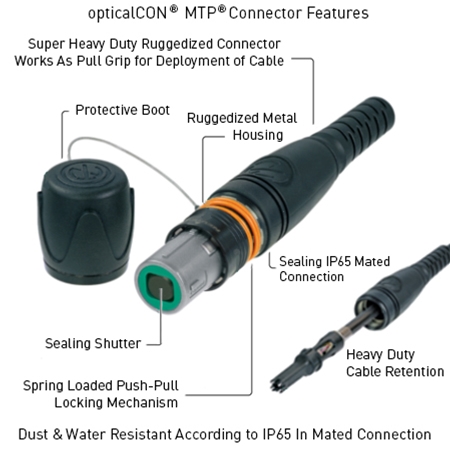

The opticalCON MTP® cable connector accommodates 12 optical fibers (multimode PC or single mode APC) based on conventional and proven MTP® connectivity, protected by a ruggedized and durable all-metal housing. A spring loaded push-pull locking mechanism provides excellent cable retention utilizing aramid yarn, and an automatically operated sealing cover protects the connectors from all contaminants like dirt and dust.

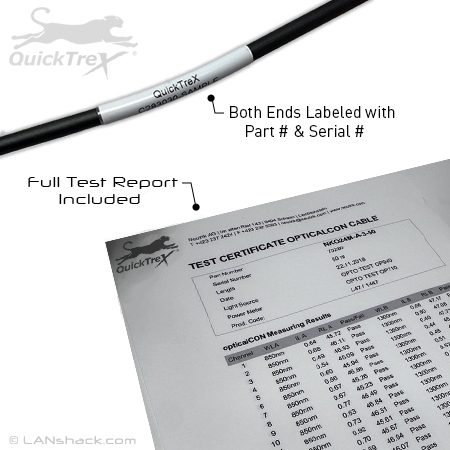

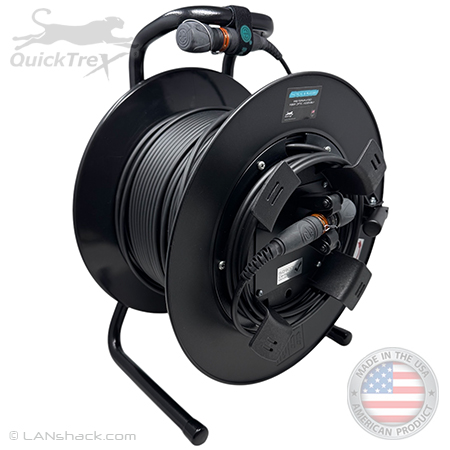

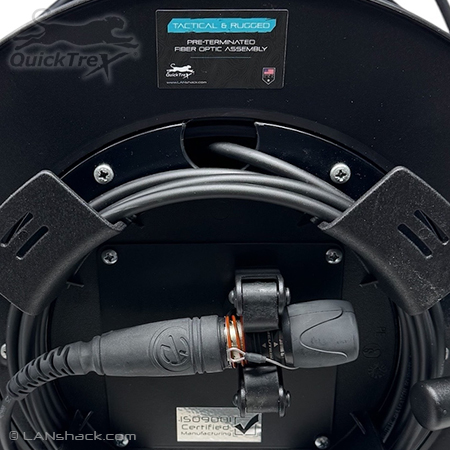

Our Tactical and Rugged Assemblies can optionally be installed on a heavy duty Schill deployment reel, designed for quick deployment and retrieval. These Schill reels include a door which houses the connectors for safe and secure storage while not in use. This assembly is made in the USA by skilled technicians under controlled conditions, and comes to you fully tested and ready for immediate use. The test results are placed on the inside of the door.

Features:

  • For Point-to-Point multichannel routing
  • Ruggedized and dirt-protected 12-channel fiber optic connection system
  • Wiring Type A
  • Ruggedized and dirt protected fiber optic connection system
  • Waterproof and dust proof- IP65 safety standard in mated condition
  • Cable connector features rugged all metal housing and heavy-duty cable retention
  • Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
  • Reliable Push-Pull locking mechanism
  • Easy to clean, no special tools required
  • Tested to meet MIL-PRF-85045
  • High impact and crush resistant - it can withstand a heavy vehicle and high foot traffic

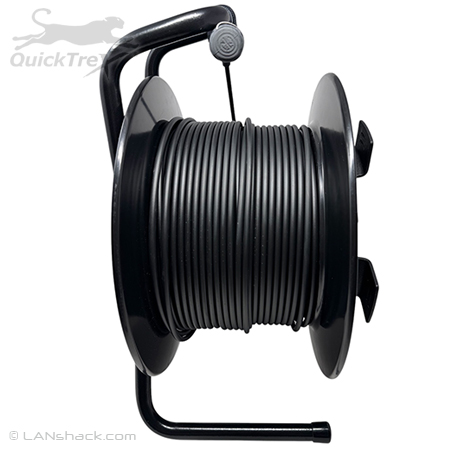

Schill Reels

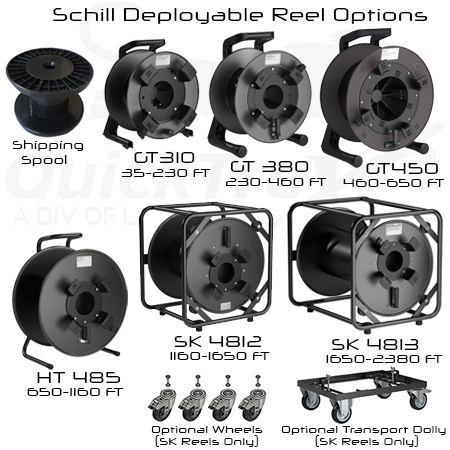

This tactical fiber is commonly used for deployment situations where the fiber needs to be deployed fast and reeled back up when done. Therefore we recommend using one of the Schill Reel options for your tactical assembly. We have three different options depending on the length of your assembly. Please choose the correct one per the length of your fiber because each reel is sized to hold a certain length. We also have a no reel option for shorter lengths, and a basic shipping spool for situations where a deployment reel isn't needed.

Specifications

Fiber Type
Singlemode 9/124.8
Fiber Count
12
Fiber Core Size
9/124.8 - 9µm
Wavelength
1310/1550nm
Bandwidth
N/A
Jacket Material
Polyurethane
Jacket Rating
Tactical
Outer Jacket Color
Black
Strength Member
Aramid Yarn
Length Options
10 - 2380 ft
Testing
IL Max 0.5dB, Min -0.1dB ORL -55dB
Storage Temps
-70°C to +85°C
Operating Temps
-55°C to +85°C

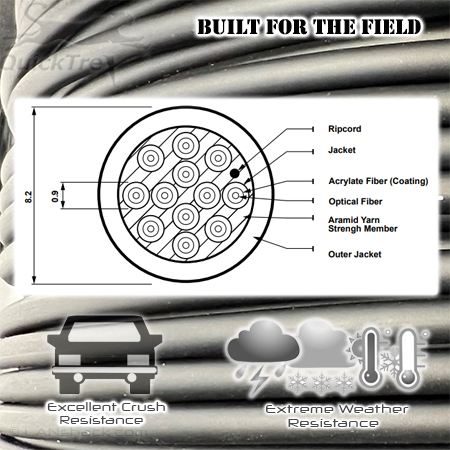

Cable Diameter
8.2 mm
Weight
0.04 lbs. / ft
Min. Bend Radius / Installation
8.2 cm (3.23 in)
Min. Bend Radius / Operation
3.3 cm (1.30 in)
Max. Tensile Load
600 N
Application
Indoor/Outdoor

Resources

PDF Document
Tactical opticalCON Assembly Build Specs
SpecSheet

PDF Document
Cable Manufacture Specs: 12 Fiber Broadcast Tactical Cable Cutsheet
Asset

PDF Document
General: opticalCON MTP Cable Assembly Technical Info
Asset

PDF Document
General: OpticalCON MTP Handling Instructions
Asset

PDF Document
General: opticalCON MTP Technical Paper
Asset

PDF Document
General: Optional Deployable Reel Features & Specs
Asset

When You Place An Order

Step 01
Step 01
Place Your Order
Team processes & forwards to one of our USA production departments.
Step 02
Step 02
Get Notifications
Receive emails on order status & estimated ship date.
Step 03
Step 03
Production & Testing
Manufactured in-house with strict quality control.
Step 04
Step 04
Track Your Order
Get tracking on your shipment until delivery.
