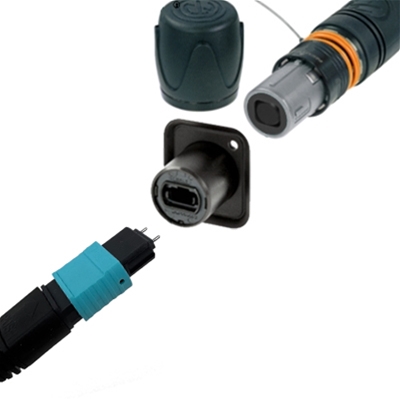

The rear compatibility of opticalCON MTP® chassis fitting with standard MTP® (ELITE male) breakout cable allows easy adaptation to fiber standard connectors such as LC, SC, ST. The approved dust shutter ensures high mating cycles and minimal maintenance.
Features:
- Ruggedized and dirt-protected 12-channel fiber optic connection system
- Laser protective metal shutter seals dust proof with two-component rubber gasket
- Accommodates standard MTP® ELITE male connectors on the rear for simple installation
- For point-to-point multichannel routing
- IP65 ingress protection in mated condition with SCDP optional gasket
Options:
- SCDP: This sealing gasket provides a dust and water resistant assembly for all D-shape chassis connectors for front panels.
- SCDX: This hinged cover seals D-size chassis connectors from water, dust and dirt in unmated condition according to IP42.
- SCCD: The spring-loaded cover SCCD-W shuts automatically after unplugging the cable connector and seals the chassis connectors against dust and water to IP65. The transparent cover allows you to see the protected chassis connector all the time.
- SCD-NC: Rugged rubber sealing cover for opticalCON chassis connectors. Fiber applications as drop down or stage boxes and certain outdoor devices require an additional protection of the opticalCON chassis connectors. The sealing dust cover encloses the entire shutter group and completely protects the interior from pollutant and ingress of water. It can be mated with the cable connector cover to keep the interior clean.
- SCNO-FDW-A: Rugged, all metal sealing cover for opticalCON chassis connectors. Fiber applications as drop down or stage boxes and certain outdoor devices require an additional protection of the opticalCON chassis connectors. The sealing dust cover encloses the entire shutter group and completely protects the interior from pollutant and ingress of water. It can be mated with the cable connector cover to keep the interior clean.
Availability: Usually ships within 24 hours.
