Singlemode In Stock Pre-Terminated Assemblies

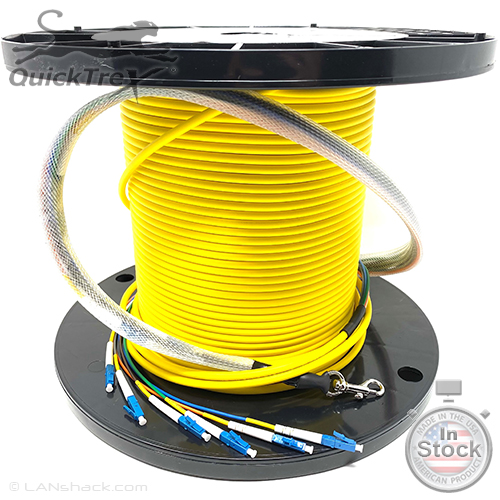

Stock 6 Strand Indoor/Outdoor Plenum Rated Singlemode Pre-Terminated Fiber Optic Cable Assembly with Corning® Glass, LC UPC Connectors, and Pulling Eyes - 500FT - Made in the USA by QuickTreX®

SKU:QT-IS-PTFOA-S-IO-6-LCU-2P-500-PR 5.0/5 (254 Reviews)
$495.00
Icon
4 Unit(s) available
estimated lead time
Estimated Lead Time
In Stock - Ships within 1-2 Business Days
expected receive dates
Receive Between
July 18-28, 2025

Add Related Products

Product Overview

This QuickTreX® 500 foot Stock 2 Strand Indoor/Outdoor Plenum Rated Singlemode Pre-Terminated Fiber Optic Cable Assembly is made with  Corning® Glass, includes LC UPC Connectors, and pulling eyes on both ends.  We pre-make these assemblies so they are on the shelf and ready to ship.  You can be assured to have them lightning fast for your urgent fiber optic cable installation or emergency repair.  These assemblies are made in the USA and have a longstanding reputation of 25+ years for premium quality and reliability that cannot be beat. We have a strict quality control manufacturing process and are ISO 9001 certified.  This assembly follows our exact custom manufacturing process and includes premium components including Corning® glass.  It is also made by highly skilled technicians under strict quality control and comes to you fully tested and ready for immediate installation.

The jacket on the fiber optic assembly included will have a plenum rated indoor/outdoor jacket. Below describes typical indoor/outdoor jacket applications:

Our Indoor/Outdoor Pre-Terminated Fiber Optic Cable Assemblies are perfect for connecting the networks of two buildings through the use of an underground conduit, headend termination to a fiber backbone, termination of fiber rack systems, multi-floor deployment where select fibers are used at each floor, or intra-building backbones. This cable is suitable for indoor and outdoor use, so there is no 50 foot fire code requirement traditionally found with outdoor (OSP) cable. This indoor/outdoor cable has a water blocking aramid yarn strength member surrounding the fiber optic strands and a UV resistant outer jacket making it a very versatile and perfect choice for a large variety of installations.  This cable can be installed and left exposed in outdoor locations where blunt force or rodent chew damage is not a concern.

A plenum rated jacket which is perfect for installations that transition from an outdoor location such as an underground conduit, to an interior location that requires a plenum rated jacket such as ventilation shafts.  A cable rated for plenum installation will have low-smoke characteristics as defined by the NFPA (National Fire Protection Agency).


Standard QuickTreX® Manufacturing Features:

  • Fast Custom ISO 9001 Certified Manufacturing in the USA. 2-millimeter color coded or sequentially labeled furcation tubing is installed on each strand for easy identification and extra durability before, during, and after the pull.
  • Heat shrink tubing and glue set is used at the transition from the jacket to the furcation tubing providing superior strength and strain relief while pulling the assembly.
  • A 18" Breakout will be included on each end of the assembly.  The breakout is the point at which the strand exits the cable jacket and meets the connector.
  • Each connector is individually plastic wrapped to prevent contamination by pulling lubricants and/or other contaminants.
  • Each assembly includes a wrap around-label on both ends of the assembly which will include the QuickTreX® individual serial number.
  • Each Assembly includes a full test report. During our testing process all fiber ends are visually inspected with a fiberscope of 400 power or better for surface defects including, cracking, pitting, and scratches, on the glass surface of the connector.  All connector ends are then tested utilizing a professional grade loss test set.
  • The test report is saved in our database for 1 year and can be requested at any time.
  • Pulling eyes will be included on both ends of the assembly.  They are made from super strong polyethylene mesh and feature a free-spinning buckle to eliminate twisting of the cable during the pull. Heat shrink tubing is used where the basket meets with the turnbuckle (pull eye hook) and where the basket ends and connects with the cable jacket to prevent snags and promote a smooth pull.

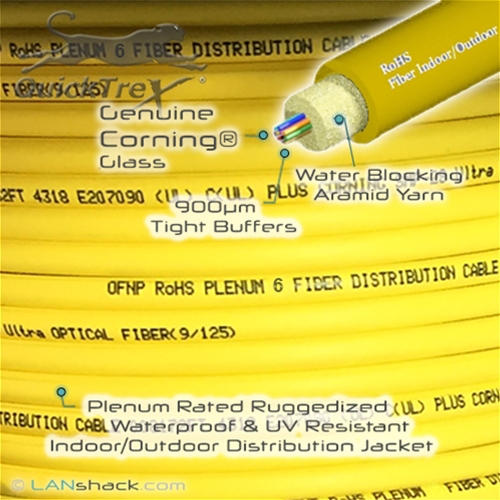

About the Cable Jacket:

  • Singlemode 9/125 SMF-28 Ultra Fiber Exclusive use of Corning® Optical Fibers
  • Wavelength – 1310/1550nm
  • Link Length: 10,000 m (1Gb/s@1550nm), 5,000 m (10Gb/s@1550nm)
  • Bandwidth (EMB High Performance): 4700MHz.km@850nm
  • Yellow Jacket Color
  • Indoor/Outdoor UV Rated Distribution Jacket
  • Plenum (OFNP) Rated – PVC Flame Retardant
  • Water Blocking Aramid Yarn Strength Reinforcement Inside Jacket
  • 900 µm Tight Buffers
  • Jacket print ensures product identification and fiber type
  • Heavy duty distribution jacket offers protection during installation and in rugged use applications.
  • Temps: Storage -40ºC to +70ºC Operation -40ºC to +70ºC
  • Outer Diameter: 4.8mm
  • Min Bend Radius Installation: 7.2cm
  • Min Bend Radius Operation: 4.8cm
  • All components materials meet the EU RoHS and REACH Directive standards
  • ISO 9001 Certified Manufacturing in the USA

Typical Applications by Industry

  • Data Hubs: Multi-strand routing between major components in IT environments.
  • Health-Care Networks: Reliable for merging medical wings with high-speed infrastructure.
  • Event Setup Contractors: Temporary deployments in sporting or cultural arenas needing expanded capacity.

Strand Count Breakdown & Rationale

The 6-strand configuration is tailored to multi-strand connections without overwhelming cost implications, perfect for campuses or commercial hubs needing several independent fiber connections or redundancy layers.

The 6-strand solution accommodates multiple connections over a single installation, offering flexibility for multi-functional routing. With pre-termination and solid durability, it cuts down time and resource requirements.


FAQ

Does this setup support extensions?

Yes, compatible couplers allow for extensions while retaining signal integrity.

What certifications apply to the cabling?

It is plenum-rated and ISO-compliant, suitable for NFPA indoor needs.

Is rodent resistance included in its features?

This assembly focuses on versatile UV and water-resilience; alternative armored options are recommended for rodent areas.
