OpticalCON DUO Pre-Terminated Assemblies & Accessories

2 Fiber Broadcast Tactical Singlemode Custom Deployable Fiber Optic Cable Assembly with Ruggedized Neutrik OpticalCON Duo Waterproof IP65 Rated Connectors - Made in the USA by QuickTreX®

SKU:QT-OC-DUO-S 5.0/5 (278 Reviews)
  • • Rapid Deployment
  • • Temp Networks
  • • Indoor/Outdoor Rated
$1,030.75
At a Glance
  • Kevlar Reinforced
  • Designed to Withstand Harsh Environments
  • Perfect for Setting Up Temporary Networks
  • IP65 Rated Connectors
  • 10-5285 Foot Length Options
  • Polyurethane Jacket
  • Indoor/Outdoor Rated
  • High Impact & Crush Resistant
estimated lead time
Estimated Lead Time
3-5 Business Days
expected receive dates
Receive Between
July 17-28, 2025
Made in USA
TAA Compliant
RoHs Compliant
ISO 9001
Quality Control
Third Party Lab Tested

Add Related Products

Our QuickTreX® opticalCON DUO® fiber optic assemblies harness the power of the Neutrik® brand tactical connector, with tactical grade fiber to provide a superior rugged product. QuickTreX® Tactical & Rugged Pre-Terminated Fiber Optic Assemblies are designed to withstand the harshest of environments. This assembly is military approved, and is ideal for audio and broadcast networks.

The opticalCON DUO cable connector houses a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. A spring-loaded push-pull locking mechanism provides superior protection for the connectors, and the fiber provides excellent cable retention utilizing aramid yarn. An automatically operated sealing cover protects the connectors from all contaminants like dirt and dust.

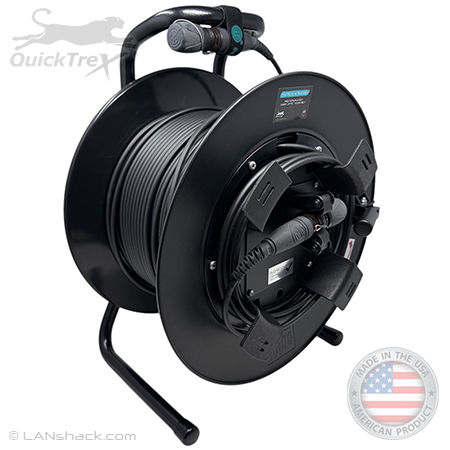

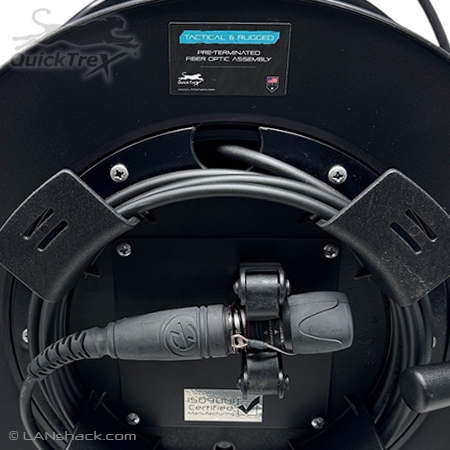

Our Tactical and Rugged Assemblies can optionally be installed on a heavy duty Schill deployment reel, designed for quick deployment and retrieval. These Schill reels include an auxilary spool to store the  which houses the connectors for safe and secure storage while not in use. This assembly is made in the USA by skilled technicians under controlled conditions, and comes to you fully tested and ready for immediate use. The test results are placed on the inside of the door.

Features:

  • Ruggedized connectors
  • Contaminant protected fiber optic connection system
  • Waterproof - IP65 safety standard in mated condition
  • Accommodates standard optical LC-Duplex connectors
  • Standard UPC Polish or APC (Angle Polish) options
  • Cable connector features rugged all metal housing and heavy-duty cable retention
  • Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
  • Reliable Push-Pull locking mechanism
  • Easy to clean, no special tools required
  • Tested to meet MIL-PRF-85045
  • High impact and crush resistant - it can withstand a heavy vehicle and high foot traffic

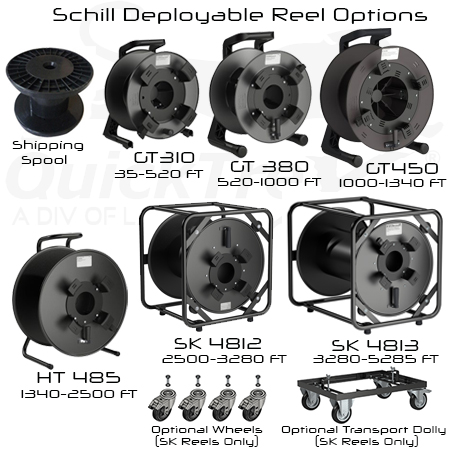

Schill Reels
This tactical fiber is commonly used for deployment situations where the fiber needs to be deployed fast and reeled back up when done. Therefore we recommend using one of the Schill Reel options for your tactical assembly. Please choose the correct one per the length of your fiber because each reel is sized to hold a certain length. We also have a no reel option for shorter lengths, and a basic shipping spool for situations where a deployment reel isn't needed.

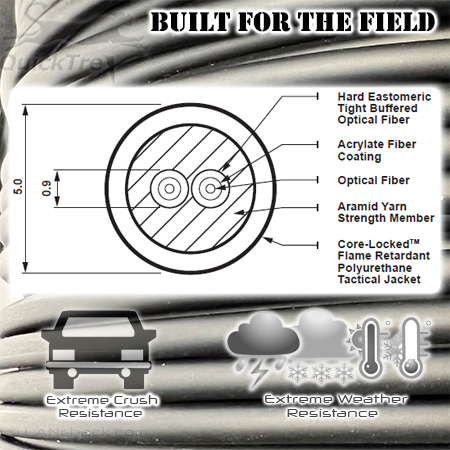

Specifications

Fiber Type
Singlemode 9/125
Strand Count
2
Fiber Core Size
9/125 - 9µm
Wavelength
1310/1550nm
Bandwidth
N/A
Jacket Material
Polyurethane
Jacket Rating
Tactical
Outer Jacket Color
Black
Strength Member
Aramid Yarn
Length Options
10 - 5285 ft
Testing
IL Max 0.5dB, Min -0.1dB ORL -55dB
Storage Temps
-70°C to +85°C
Operating Temps
-40°C to +85°C
Cable Diameter
5 mm
Weight
0.0161 lbs/ft
Min. Bend Radius / Installation
50 mm
Min. Bend Radius / Operation
25 mm
Max. Tensile Load / Installation
1800 N (short-term)
Max. Tensile Load / Operation
600 N (short-term)
Application
Indoor/Outdoor

Resources

PDF Document
Tactical opticalCON Assembly Build Specs
SpecSheet

PDF Document
General: 2 Fiber Broadcast Tactical Cable Cutsheet
Asset

PDF Document
General: opticalCON Duo Cable Assembly Technical Info
Asset

PDF Document
General: OpticalCON Duo Handling Instructions
Asset

PDF Document
General: opticalCON Duo Technical Paper
Asset

PDF Document
General: Optional Deployable Reel Features & Specs
Asset
