Modular Plugs with Loadbar

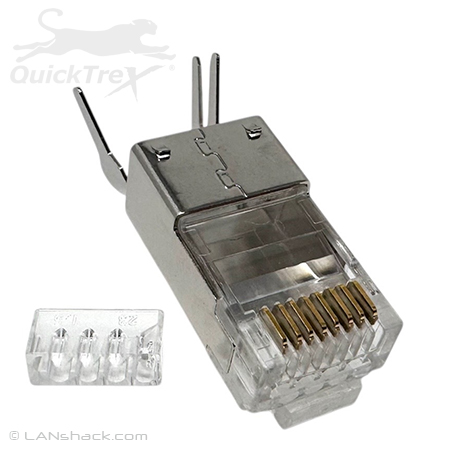

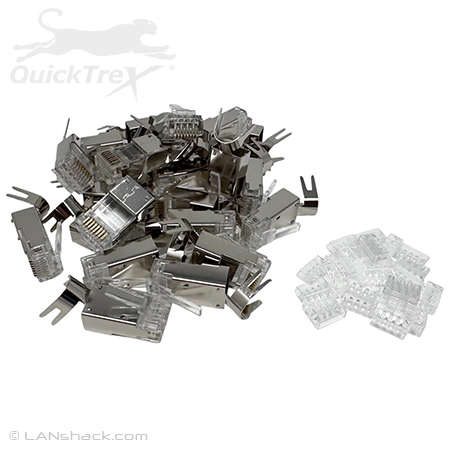

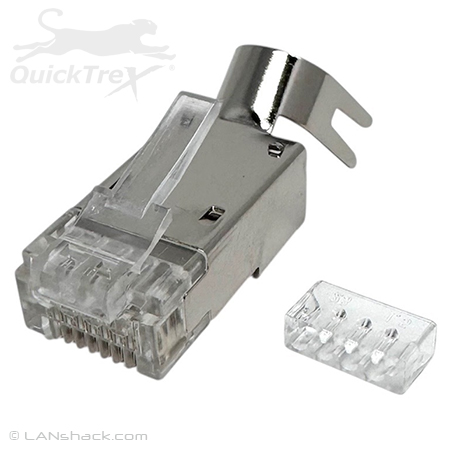

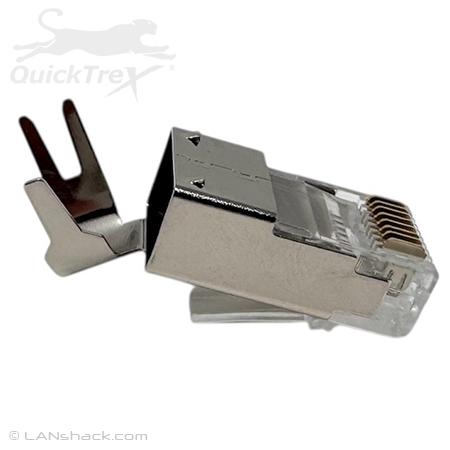

QuickTreX® Cat 8 Shielded Modular Plug with Load Bar - Bag of 25

QuickTreX® Cat 8 Shielded Modular Plug with Load Bar - Bag of 25

SKU:QT-LS8S-25
$62.70
At a Glance
  • 50µm Pure Gold Plated Conductor Contacts
  • Includes Load Bars for Easy Termination
  • Compatible with Solid or Stranded Conductors
  • Supports 40G Speeds
Estimated Lead Time
Typically Ships Within 24 Business Hours
Receive between
July 29-August 5, 2024
These Cat 8 modular plugs are designed to work with solid & stranded shielded ethernet cabling. These plugs provide a high quality solutions for terminating your future-proof network.  They are shielded providing you protection from EMI.

Features:

  • Shielded for Protection from EMI
  • Strong polycarbonate for durability
  • Compatible withCat 8 and Cat 7A cable
  • 50u Gold Plated Conductors
  • Fits into any standard ethernet port
  • 8P8C: 8 Position 8 Contact
  • Three prong contacts fit solid & stranded wire
  • UL & RoHS Certified for safety compliance
  • Bag of 10

Important Note: You must use our large OD Cat 8 RJ-45 Crimping Tool for these plugs.  A standard RJ-45 Crimper will not work with these modular plugs. These plugs have been tested to work with our QuickTreX® Cat 8 Cable.  Please check specifications prior to using with other cable.


Type:    RJ45 Plug
Housing Material:    Polycarbonate, UL 94V-0 and UL 94V-2
Gold Plating:    50u
Wire Guide:    Cat7A or 8 CMR/CMP Solid or Stranded Cable
Compatible With:    Cat 8 or 7A CMR/CMP Solid or Stranded Cable
RoHS Compliant:    Yes
Cable Compatibility OD:    7.7mm to 8.0mm
Shielded:    Yes
Insulation Compatibility O.D.:    1.3mm to 1.5mm
Pins:    8P8C
Operating Temp:    -10°C to 60°C
