Indoor MTP/ MPO OM3 10-GIG Fanout Assemblies

Custom Indoor 144 Fiber MTP® OM3 - 50/125 Fanout Assembly (6 x 24 MTP to 144 Simplex Connectors) - Plenum Rated - made in USA by QuickTreX® with Genuine US Conec® Connectors and Corning® Glass

SKU:QT-MTP-IFO-144-6XM-OM3 5.0/5 (188 Reviews)
$2,283.40
estimated lead time
Estimated Lead Time
2-4 Business Days
expected receive dates
Receive Between
June 17-26, 2025
Made in USA
TAA Compliant
RoHs Compliant
ISO 9001
Quality Control
Third Party Lab Tested

Add Related Products

QuickTreX® MTP® Premium Fanout Assemblies are built custom for your critical network. We start with genuine MTP® connectors from US Conec® and precision terminate them to genuine Corning Clearcurve® OM3 Laser optimized fiber. Our MTP® termination process delivers uniform height and positioning for maximum physical contact for consistently low insertion loss and excellent return loss characteristics across the entire 24 fiber interface. These ruggedized assemblies transition to 2mm sequentially numerically labeled buffer tubes and simplex connectors (to your choosing). Our assemblies are proudly made in the USA by highly trained technicians. We have strict quality control measures in place so you can be certain your assembly will work perfect once installed.

Our indoor plenum rated jacket assemblies are rated for all indoor installations, including plenum rated spaces. A cable rated for plenum installation will have low-smoke characteristics as defined by the NFPA (National Fire Protection Agency).

Typical Applications Include:
  • Headend Termination to a fiber "backbone"
  • Termination of fiber rack systems
  • Data Center & Other High Density Applications
  • Multi-floor deployment where select fibers are used at each floor
  • Intra-building "backbones"
Features:
  • Genuine US Conec MTP Connectors
  • Genuine Corning Glass
  • Consistent Super Low Insertion and Return Loss
  • Polished & Tested in Accordance with ECI Standards & Specs
  • 2mm Labeled Furcation Tubing on Breakout Strands
  • Staggered Connectors for Easy Installation
  • All Breakouts & Strands are Sequentially Labeled
  • Clips for Duplexing the Standard Connectors are Included
  • Includes Full Test Report
  • Optional Heavy Duty Swiveling Pulling Eye
  • Made in the USA
  • Strict Quality Control
  • Fast Production Times
  • ISO 9001 Certified Manufacturing

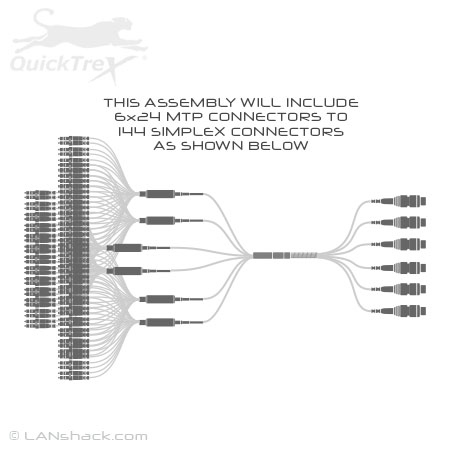

NOTE: Your assembly will include 6 x 24 MTP Connectors to 144 Simplex Connectors as seen below:

This pictures is to only to illustrate the calibration of your assembly. Your assembly will be built with staggered connectors as indicated in the product picture and build specs.

144 Simplex Connectors

NOTE: MTP® is a Registered Trademark of US Conec Ltd. Clearcurve® is a Registered Trademark of Corning Corp.

Specifications

Fiber Type
Multimode OM3 50/125 Corning® ClearCurve®
Strand Count
6 x 24 to 144 Simplex
Fiber Core Size
50/125 - 50µm
Wavelength
850/1300nm
Link Length
300 meters (10Gb/s@850nm)
Bandwidth
2000Mhz @ 850nm / km
Max. Attenuation
3.0dB / 1.2km
Jacket Material
Flame Retardant PVC
Flame Rating
NFPA 262
Outer Jacket Color
Aqua
Buffer Tubes
Flame Retardant PVC
Strength Member
Aramid Yarn
Central Strength Member
Fiber Reinforced Plastic Rod
Coating on Central Strength Member
Flame Retardant PVC
Furcation Tubing Size
3mm
Furcation Tubing Color
EIA Color Coded or Sequentially Labeled
Breakout Length
Customizable
Connector Options
Male (With Pins) & Female (Without Pins)
Pulling Eye/s
Optional
Length Options
3 - 1000 ft
Testing
IL Max 0.2db, Min -.01db
Storage Temps
-40 °C to +70 °C
Operating Temps
0 °C to +70 °C
Nominal Outer Diameter
13.0 mm
Weight
0.102 lbs. / ft
Min. Bend Radius / Installation
19.5 cm
Min. Bend Radius / Operation
13.0 cm

Resources

PDF Document
Build Specs: QuickTrex MTP Fanout Build Specs
SpecSheet

PDF Document
Cable Manufacture Specs: Manufacturer Specs
SpecSheet

Help Article
