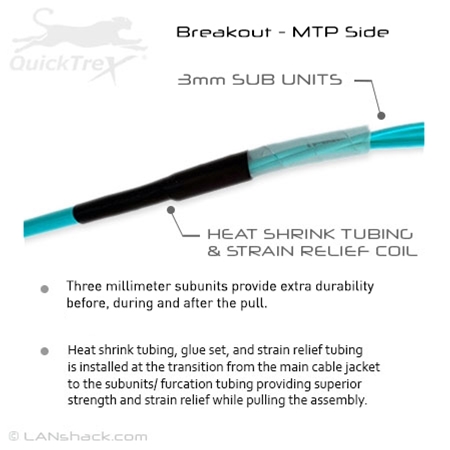

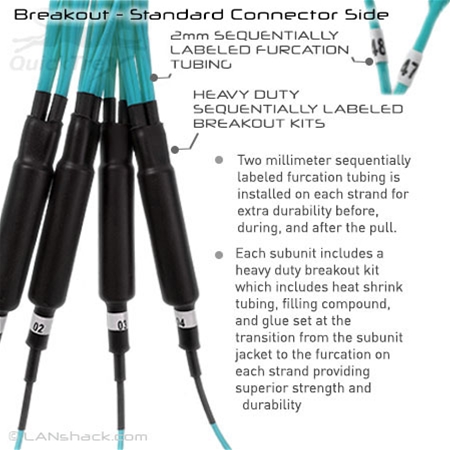

QuickTreX® MTP® Premium Fanout Assemblies are build custom for your critical network. We start with genuine MTP® connectors from US Conec® and precision terminate them to genuine Corning Clearcurve® OM3 Laser optimized fiber. Our MTP® termination process delivers uniform height and positioning for maximum physical contact for consistently low insertion loss and excellent return loss characteristics across the entire 12 fiber interface. These ruggedized assemblies transition to 2mm sequentially numerically labeled buffer tubes and simplex connectors (to your choosing). Our assemblies are proudly made in the USA by highly trained technicians. We have strict quality control measures in place so you can be certain your assembly will work perfect once installed.
Our indoor plenum rated jacket assemblies are rated for all indoor installations, including plenum rated spaces. A cable rated for plenum installation will have low-smoke characteristics as defined by the NFPA (National Fire Protection Agency).
NOTE: Your assembly will include 1 x 12 MTP Connectors to 12 Simplex Connectors as seen below:
This pictures is to only to illustrate the calibration of your assembly. Your assembly will be built with staggered connectors as indicated in the product picture and build specs.
NOTE: MTP® is a Registered Trademark of US Conec Ltd. Clearcurve® is a Registered Trademark of Corning Corp.
