Indoor MTP/ MPO Singlemode Fanout Assemblies

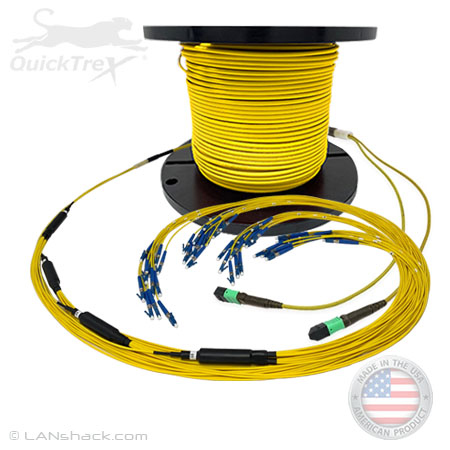

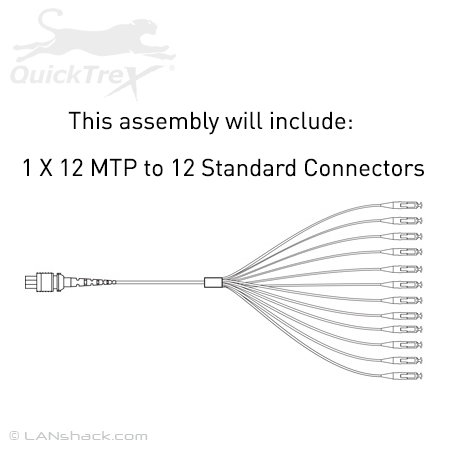

Custom Indoor 12 Fiber MTP® Singlemode APC Fanout Assembly (1 x 12 MTP to 12 Simplex Connectors) - Plenum Rated - made in USA by QuickTreX® with Genuine US Conec® Connectors and Corning® Glass

SKU:QT-MTP-IFO-12-1xM-SM 5.0/5 (202 Reviews)
$217.50
estimated lead time
Estimated Lead Time
2-4 Business Days
expected receive dates
Receive Between
June 17-26, 2025
Made in USA
TAA Compliant
RoHs Compliant
ISO 9001
Quality Control
Third Party Lab Tested

Add Related Products

QuickTreX® MTP® Premium Fanout Assemblies are built custom for your critical network. We start with genuine MTP® connectors from US Conec® and precision terminate them to genuine Corning® fiber. Our MTP® termination process delivers uniform height and positioning for maximum physical contact for consistently low insertion loss and excellent return loss characteristics across the entire 12 fiber interface. These ruggedized assemblies transition to 2mm sequentially numerically labeled buffer tubes and simplex connectors (to your choosing). Our assemblies are proudly made in the USA by highly trained technicians. We have strict quality control measures in place so you can be certain your assembly will work perfect once installed.

Our indoor plenum rated jacket assemblies are rated for all indoor installations, including plenum rated spaces. A cable rated for plenum installation will have low-smoke characteristics as defined by the NFPA (National Fire Protection Agency).

Typical Applications Include:
  • Headend Termination to a fiber "backbone"
  • Termination of fiber rack systems
  • Data Center & Other High Density Applications
  • Multi-floor deployment where select fibers are used at each floor
  • Intra-building "backbones"
Features:

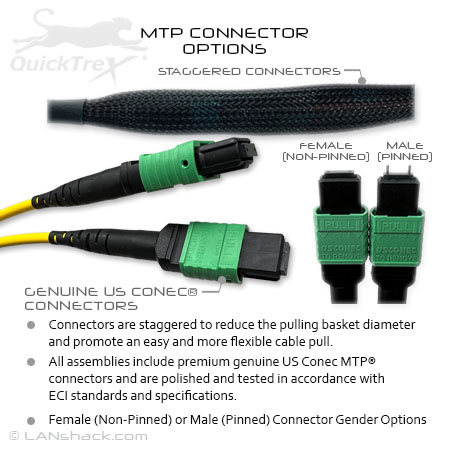

  • Genuine US Conec MTP Connectors
  • Stndard APC Polish on MTP Connectors

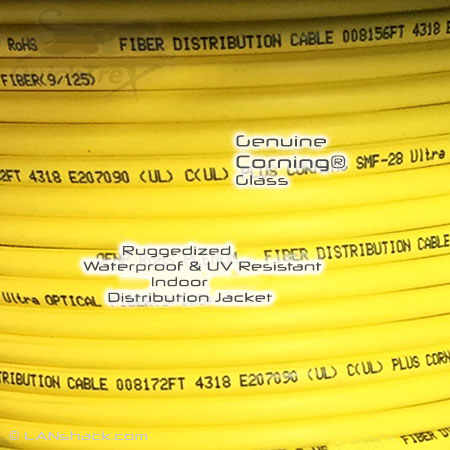

  • Genuine Corning Glass
  • Consistent Super Low Insertion and Return Loss
  • Polished & Tested in Accordance with ECI Standards & Specs

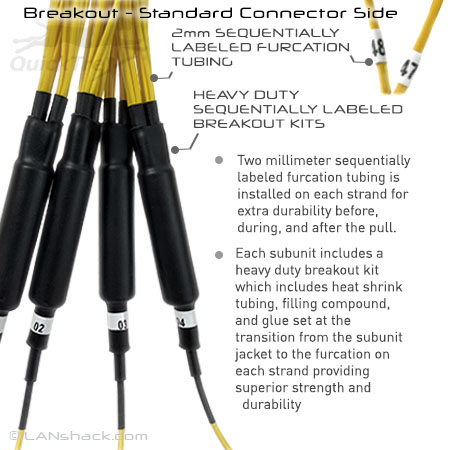

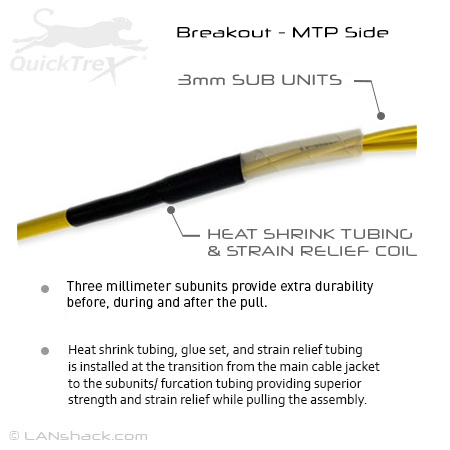

  • 2mm Labeled Furcation Tubing on Breakout Strands

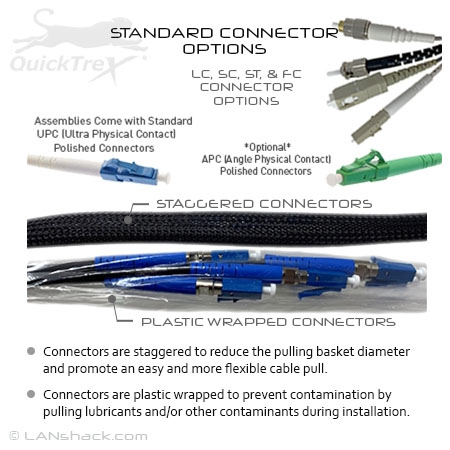

  • Staggered Connectors for Easy Installation
  • All Breakouts & Strands are Sequentially Labeled
  • Clips for Duplexing the Standard Connectors are Included

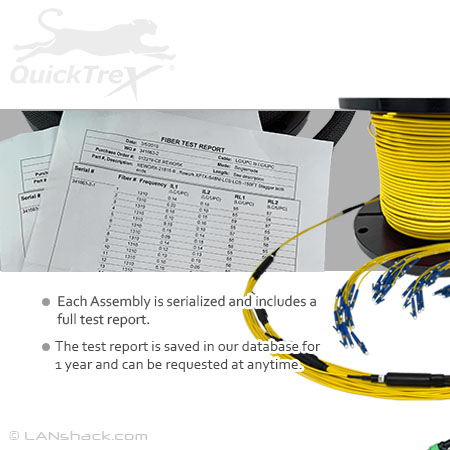

  • Includes Full Test Report

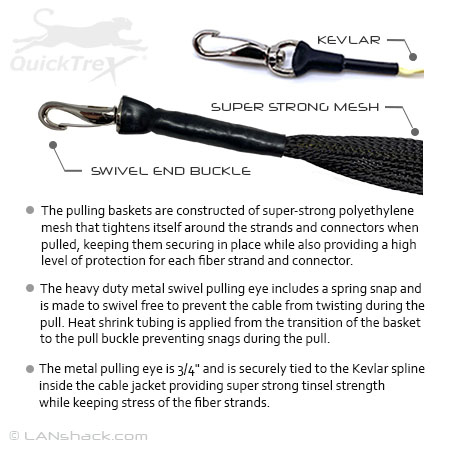

  • Optional Heavy Duty Swiveling Pulling Eye
  • Made in the USA
  • Strict Quality Control
  • Fast Production Times
  • ISO 9001 Certified Manufacturing

NOTE: MTP® is a Registered Trademark of US Conec Ltd. Clearcurve® is a Registered Trademark of Corning Corp.

Specifications

Fiber Type
Singlemode Ultra 9/125 Corning® SMF-28®
Strand Count
1 x 12 to 12 Simplex
Fiber Core Size
9/125 - 9µm
Wavelength
1300/1550nm
Link Length
10,000/5,000 meters (1/10Gb/s@1550nm)
Bandwidth
N/A
Max. Attenuation
0.5dB / 0.5km
Jacket Material
Flame Retardant PVC
Flame Rating
NFPA 262
Outer Jacket Color
Yellow
Buffer Tubes
Flame Retardant PVC
Strength Member
Aramid Yarn
Central Strength Member
Fiber Reinforced Plastic Rod
Coating on Central Strength Member
Flame Retardant PVC
Furcation Tubing Size
3mm
Furcation Tubing Color
EIA Color Coded or Sequentially Labeled

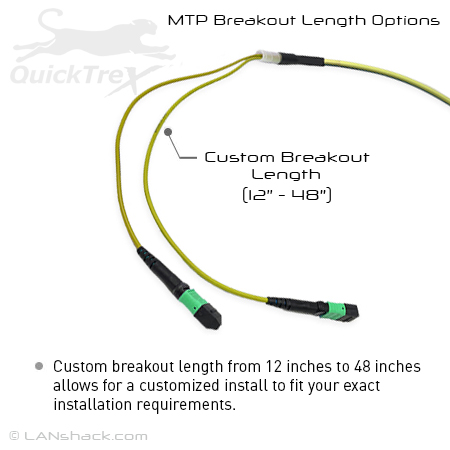

Breakout Length
None
Connector Options
Male (With Pins) & Female (Without Pins)
Pulling Eye/s
Optional
Length Options
3 - 1000 ft
Testing
IL Max 0.2db, Min -.01db
Storage Temps
-40 °C to +70 °C
Operating Temps
0 °C to +70 °C
Nominal Outer Diameter
2.95 mm
Weight
0.007 lbs. / ft
Min. Bend Radius / Installation
4.45 cm
Min. Bend Radius / Operation
2.95 cm

Resources

PDF Document
Build Specs: QuickTrex MTP Fanout Build Specs
SpecSheet

PDF Document
Cable Manufacture Specs: Manufacturer Specs
SpecSheet

Help Article
Fiber Optic Definitions
Helpful

Help Article
Pre-Terminated Fiber Optic Assemblies Guide
Helpful
