Cat 6 Ethernet Patch Panels

On backorder until TBD

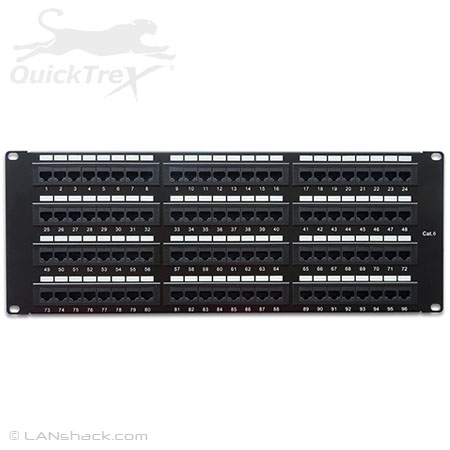

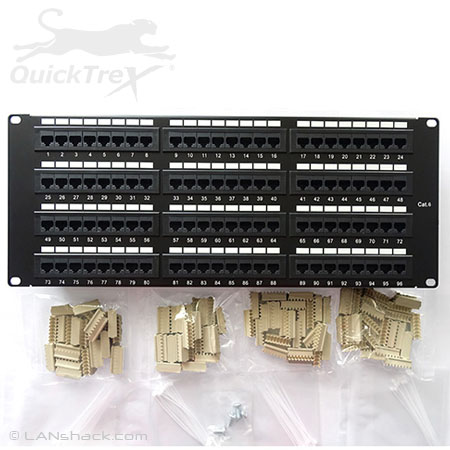

QuickTreX® 96 Port Cat 6 Ethernet Patch Panel

SKU:110C6-96P-PP 5.0/5 (100 Reviews)
$120.75
expected receive dates
Receive Between
July 17-19, 2025
RoHs Compliant
Quality Control
TIA Compliant
EIA Compliant
UL Listed

Add Related Products

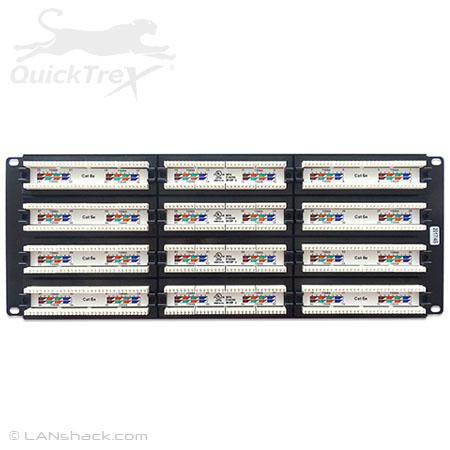

Our Category 6 Patch Panels meet and exceed the latest standards in accordance with TIA/EIA 568-B.2-1 and effectively double the bandwidth of standard Category 5e panels. The internal circuit board design uses crosstalk cancellation technology which allows for consistently superior performance. They feature "110" Terminations, for easy, trouble free installations.. These patch panels have been extensively tested in the laboratory, and in the field.

  • UL approved
  • 19 inch 4U rackmount
  • Meets TIA/EIA-568B.2/568B.2-1 Cat.6
  • ISO/IEC 11801 and EN 50173-1 specification
  • Support T568A & B wiring
  • Wire diameter : 22 ~ 26AWG
  • Insulation diameter range : 0.70 to 1.40mm
  • Jack contacts : Phosphor bronze, 50micron gold plate over nickel plating.
  • IDC contacts : Phosphor bronze, 50micron gold plate over nickel plating.
  • Safety : UL1863
  • Flammability : UL 94 VO
  • Operating temperature : -40 to +70 dgree Celsius
  • Weight : 1.55LBS
  • Mounting Hinge: 102227
  • 25 years warranty

Resources

PDF Document
General: Cat6 96 Port Patch Panel Specs
Asset

Videos

When You Place An Order

Step 01
Step 01
Place Your Order
Our team processes your order within 24 business hours.
Step 02
Step 02
Get Notifications
You receive emails about your order status.
Step 04
Step 03
Track Your Order
Get tracking on your shipment until delivery.
