OM4 Multimode MTP®/MPO Cassettes

MPO 24 Fiber (1 X 24 MPO Male) to 24 LC (12 Duplex Adapters) Multimode OM4 Super High Density (SHD) Cassette by QuickTreX

SKU:QT-MPO-C-SHD-OM4-24X1-12LC 5.0/5 (189 Reviews)
$124.00
Icon
47 Unit(s) available
estimated lead time
Estimated Lead Time
Typically Ships Within 24 Business Hours
expected receive dates
Receive Between
July 15-22, 2025
RoHs Compliant
Quality Control
Third Party Lab Tested
Plug & Play

Add Related Products

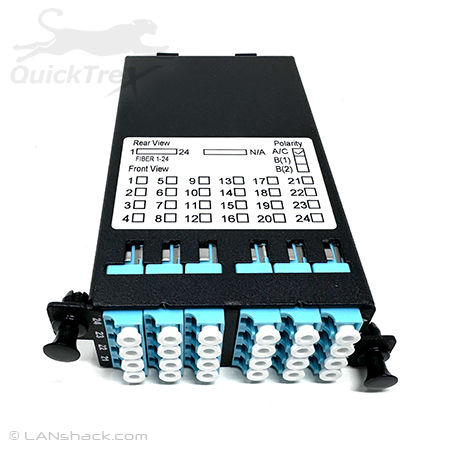

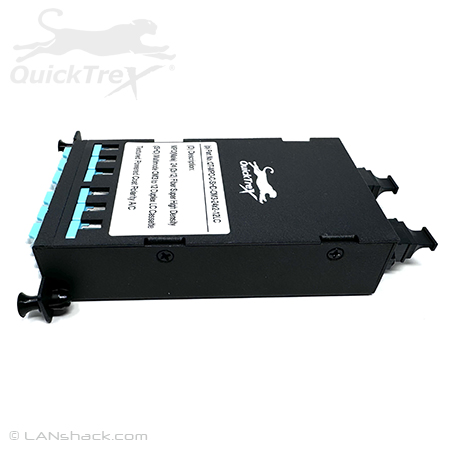

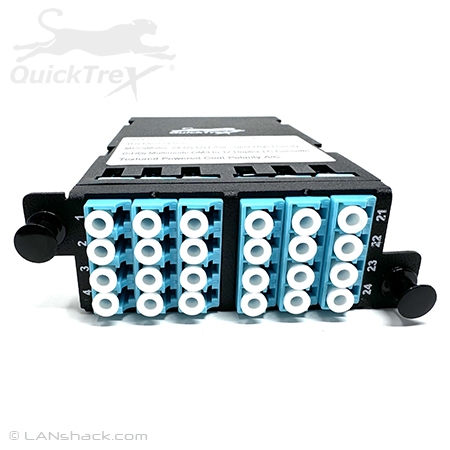

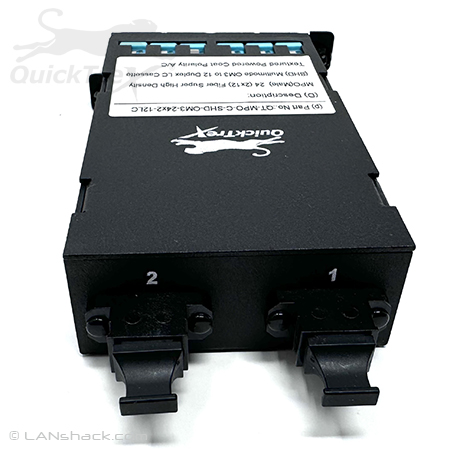

This QuickTreX MPO Male 24 Fiber (1 X 24 MPO) to 24 LC (12 Duplex Adapters) Multimode OM4 Super High Density (SHD) Cassette is designed to take your 24 fiber MTP® or MPO Trunk assembly with a female MTP connector and transition it to 24 LC (12 Duplex) adapters.  On the back side of the cassette you have (1) 24 Fiber Male MPO connector and on the front side you have 24 separate LC connectors.  From the front of your cassette you then patch out with standard duplex (or simplex) fiber optic patch cables to your equipment such as an SFP module or fiber optic media converter.

This Super High Density (SHD) product line is designed to accommodate high fiber strand counts.  This product line is perfect for data centers, corporate campuses, or any very high density installation.   We offer 2 Super High Density (SHD) Enclosures.  Our 5 panel (1U) rack mount enclosure can house up to 120 fibers and out 14 panel (2U) can house up to 336 fibers.  We offer blank panels for slots not being used.

This cassette utilizes a standard polarity A (Straight Through) fiber pin out.

NOTE:

  • This cassette has a male MPO connector and requires a cable assembly with a female MPO/MTP connector.
  • This cassette is designed to fit our super high density (SHD) chassis fiber enclosures.  It will not fit a standard LGX chassis enclosure.

Specifications

Fiber Type
Multimode OM4 50/125µm
Fiber Count
24
MTP Fiber Count
1 x 24
Connector Type
MPO Standard Compliant Multifiber Connector
Adapter Type
12 Duplex OM4 Adapters
Adapter Color
Aqua
Polarity
Polarity A (Standard)
Cassette Encasement
Black Powder Coated Steel Encasement

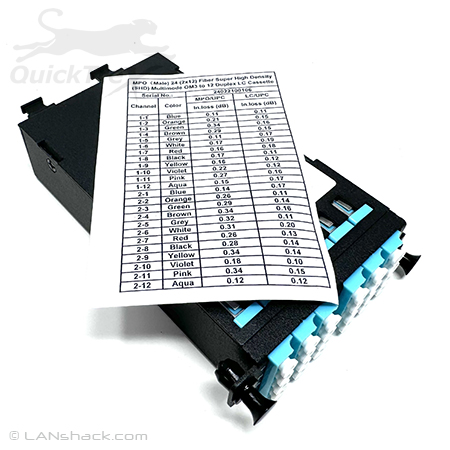

Test Report
Full Test Report Included
Cassette Serialization
Each Cassette is Serialized
Dimensions
3.5"W x 5.5"D x 1.25"H
