MTP® 24 Fiber (1 X 24 MTP Male) to 24 LC (12 Duplex Adapters) Singlemode Low Loss LGX Cassette with Genuine US Conec® Connectors by QuickTreX®

Our premium QuickTreX® LGX MTP® cassettes include genuine US Connec® male connectors, high performance LC zirconia adapter sleeves, and ultra low incertion loss.  They are perfect for you high density critical network installations.  This MTP cassette allows for rapid deployment of fiber optic cabling in data centers, corporate campuses, or any high density installation.  These cassettes are designed to fit our standard LGX termination box enclosures.

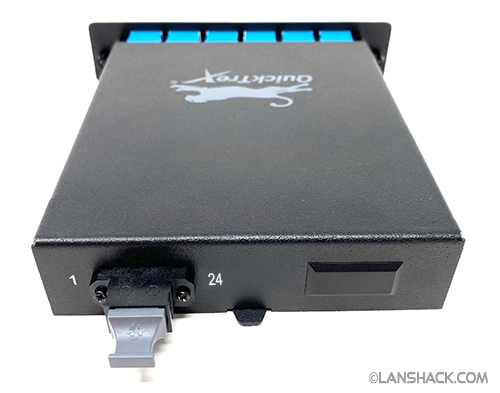

This QuickTreX® MTP 24 Fiber (1 X 24 MTP Male) to 24 LC (12 Duplex Adapters) Singlemode (LGX) Cassette is designed to take your 1 x 24 fiber MTP® or MPO Trunk assembly with female MTP/MPO connectors and transition it to 24 LC (12 Duplex) adapters.  On the back side of the cassette you have one 24 Fiber male MTP connectors and on the front side you have 24 separate LC connector adapters.  From the front of your cassette you then patch out with standard duplex (or simplex) fiber optic patch cables to your equipment such as an SFP module or fiber optic media converter.

FEATURES

• Genuine US Conec® MTP Male Connectors
• High Performance LC Zirconia Sleeve Adapters
• Premium Singlemode Optical Fiber
• Factory Terminated
• 100% Tested with Ultra Low Insertion Loss
• Full Test Report Included
• Polarity A (standard)
• Each Cassette is Serialized for Quality Control & Traceability
• RoHS Compliant

• Rapid Deployment of High Density Fiber
• MTP® Components Feature Superior Optical and Mechanical Properties
• High density - up to 72 fibers in 1U and up to 288 fibers in 4U
• Reliability - 100% tested - a combination of high quality components and manufacturing quality control guarantees product to the highest standards.

STANDARDS

• TIA/EIA-568-C.3 and ISO/IEC 11801 - cable
• IEC 61754-7 & EIA/TIA-604-5 - MTP
• RoHS, REACH and SvHC materials compliant
• IEC 61754-20 (LC) & IEC 61754-14 (SC)
• IEC 60793 - Optical fiber

NOTE: This 24 fiber cassette includes a male MTP connector which requires one 24 fiber female (non-pinned) MTP or MPO cable or assembly.

Availability:  Usually ships within 24 hours

Urgent Orders:  Read Information

MTP® is a registered trademark of US Conec Ltd.
