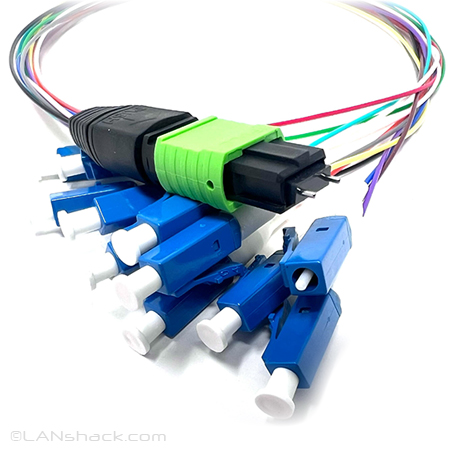

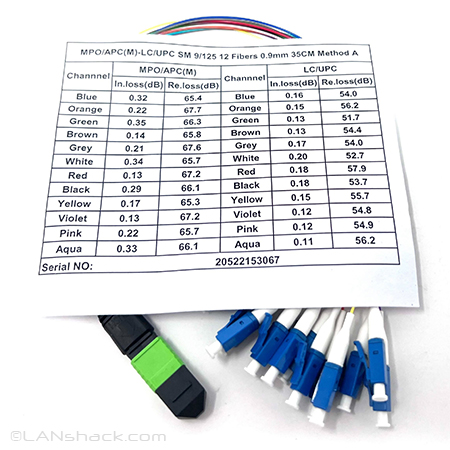

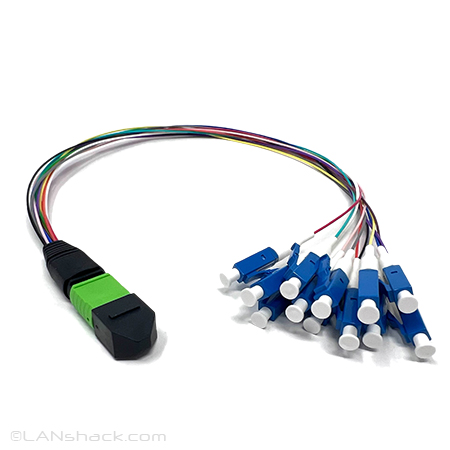

Our line of stock MPO/MTP fiber optic fanout cable assemblies are a great value, high quality, and ship same day. These singlemode assemblies also include a riser (ONFR) rated jacket. MPO connectors are interchangeable with MTP® connectors. These fanout assemblies feature MPO APC (1 X 12) Male (Pins) to standard LC UPC simplex connectors and are constructed of 12 strands of 9/125 micron singlemode fiber. The connectors are high quality and the MPO side has a industry standard APC polish and the LC connectors include an industry standard UPC polish. They are 100% factory tested and serialized with test results included. Typical insertion loss on the MPO side is <0.30dB and <0.20 on the LC side. The typical return loss on the MPO side return loss >65dB and >0.55dB. These cables include a standard Method A straight through pin out.
MPO/MTP fanout assemblies are designed to take an existing MPO or MTP assembly and transition it standard fiber optic connectors. These fanout assemblies are perfect for patcing into an MTP/MPO adatper panel and then faning out your connectors to your equipment or another adapter panel that will distibute your standard LC connectors.
NOTE: The MPO connector is male (pins) and requires a female (non-pinned) MTP or MPO connector to couple to.
