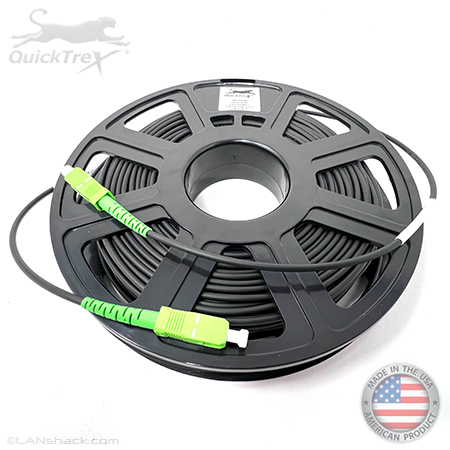

Are you in need of premium ultra-flexible armored tactical fiber optic patch cables? Then look no further. Our QuickTreX® Stock Armored Indoor / Outdoor Tactical (PU) Rated Singlemode 9/125 Premium Simplex Fiber Optic Patch Cables are made in the USA by highly trained technicians and are constructed with premium components. We make pre-manufacture these tactical fiber optical patch cables along side our customer patch cables so they follow the same strict quality control procedures. The only difference being, they are ready to ship same day! These tactical patch cables come on a mini cable reel so you can quickly deploy your patch cable for use and then quickly coil it back up after use.
Our armored tactical fiber optic patch cables are perfect for patching fiber to equipment in outdoor, industrial, and any harsh environment application. Using an armored patch cable provides crush resistance and prevents damage to the fiber strands. This is especially important for critical networks where zero down time is an absolute must. Fiber optic patch cables are the last critical link in connecting your network.
Our QuickTreX® armored singlemode patch cables always include Genuine Corning SMF-28e+ Glass and premium connectors with ceramic ferrules for increased durability and accuracy. These fiber optic patch cables offer premium precision, making them a popular choice for critical installations. These tactical patch cables also feature a 2mm plenum (PU) polyurethane tactical rated jacket which make them perfect for patching equipment in the field and then quickly coiling it back up. A tactical or (PU) polyurethane jacket is specially designed for rapid deployment or temporary installations. The jacket is easy to coil back up and provides more flexibility. These patch cables includes a stainless steel coil technology. This allows for the cable to remain extremely flexible while also being crush and rodent resistant.

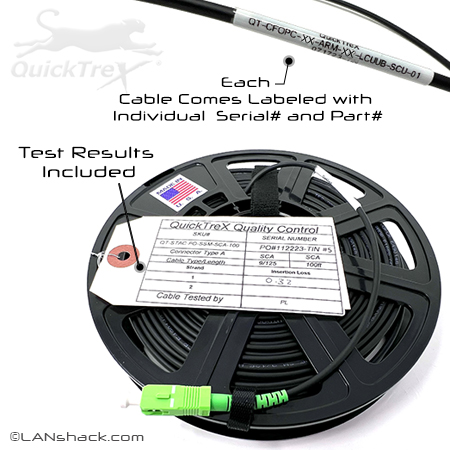

QuickTreX® fiber optic jumpers are fully tested and come with a test report to guarantee top performance. Our strict testing standards mandate a maximum allowable insertion loss if 0.02 dB (or less). Each connector is visually inspected with a 400x microscope for any surface or interior cracks, scratches, contaminants, or other imperfections which can pick up defects that insertion loss testing alone may miss. Each cable includes a label around the jacket which has an individual serial number and part number for easy identification and traceability. The cables are sealed in individual bags and the test results are included with each individual cable. Our manufacturing process includes strict quality control and is ISO9000 certified.
FEATURES
- Ultra-Flexible Armored Cable Jacket
- Each Cable is made in the USA by Skilled Technicians
- The cable is made with Genuine Singlemode 9/125 Corning SMF-28e+ glass for superior performance
- Fiber Wavelength - 1310/1550nm
- Link Length: 10,000 m (1Gb/s@1550nm), 5,000 m (10Gb/s@1550nm)
- Bandwidth (EMB High Performance): 4700MHz.km@850nm
- Black Stainless-Steel Armored 3.0mm Tactical (PU) Polyurethane Jacket
- Jacket print ensures product identification and fiber type
- Premium grade connectors with ceramic ferrules for increased durability and precision
- APC (Angle) polish
- Green SC APC connector
- Insertion loss testing performed on every cable with strict maximum allowable loss if 0.02 dB (or less)
- ORL (optical return loss) – 55db
- Each connector is visually inspected with a 400x microscope for any surface or interior cracks, scratches, contaminants, or other imperfections
- All cables are individually labelled with an individual serial number and the QuickTreX® part number for easy identification and traceability
- Each cable comes with the test results
- All component and materials meet the EU RoHS and REACH Directive standards
- Guaranteed top performance
IMPORTANT: Due to the nature of this product, they are non-cancelable and non-returnable. Please choose your product carefully.
