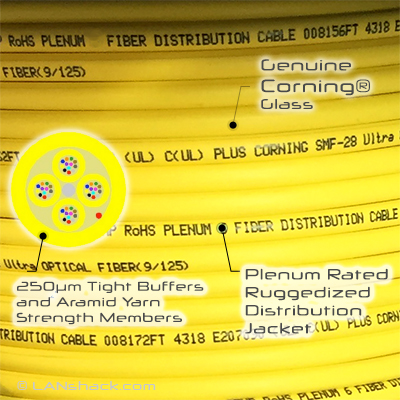

This is a plenum rated distribution type fiber with a durable jacket which provides added protection during installation. This cable is perfect for headend termination to a fiber backbone, termination of fiber rack systems, multi-floor deployment where select fibers are used at each floor, or intra-building backbones. It is suitable for all indoor applications where fiber optic cabling is needed. It utilizes 250µm color-coded bare fiber (12 bare fibers per subunit), aramid yarn strength members, and exclusive use of Corning® optical fibers. This cable is rated for all indoor installations, including plenum rated spaces and will have low-smoke characteristics as defined by the NFPA (National Fire Protection Agency).
Features and Cable Characteristics:
- Cut to your Exact Custom Length
- Optional Pulling Eyes Allow for Quick and Easy Installation
- In stock and typically ships within 24 hours
- 250 µm Color-Coded Bare Fiber
- 12 Bare Fibers Per Subunit
- Exclusive use of Corning® Optical Fibers
- Jacket print ensures product identification and fiber type
- Heavy duty distribution jacket offers protection during installation and in rugged use applications.
Specifications
Fiber Type
Singlemode 9/125 Ultra Corning® SMF-28®
Strand Count
96
Fiber Core Size
9/125 - 9µm
Wavelength
1310nm / 1550nm
Link Length
10,000/5,000 meters (1/10Gb/s@1550nm)
Bandwidth
N/A
Max. Attenuation
0.5dB / 0.4km
Jacket Material
Flame Retardant PVC
Jacket Rating
Indoor Plenum Rated (OFNP)
Flame Rating
NFPA262
Outer Jacket Color
Yellow
Strength Member
Aramid Yarn
Length Options
1 - 5000 ft
Storage Temps
-40°C to +70°C
Operating Temps
0°C to +70°C
Nominal Outer Diameter
9.3 mm
Weight
0.061 lbs. / ft
Min. Bend Radius / Installation
18.6 cm
Min. Bend Radius / Operation
9.3 cm
